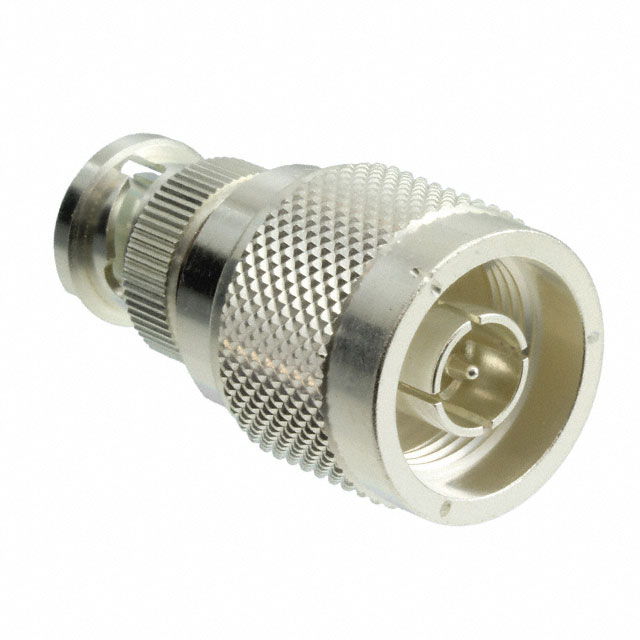

NP-BNCP(40)

LTB

Hirose Electric USA, Inc.

CONN ADAPT BNC PLUG TO N PLUG

Search across all available documentation for this part.

LTB

Hirose Electric USA, Inc.

CONN ADAPT BNC PLUG TO N PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	NP-BNCP(40)

Adapter Series	BNC to N
Adapter Type	Plug to Plug
Center Gender	Male to Male
Conversion Type	Between Series
Convert From (Adapter End)	N Plug, Male Pin
Convert To (Adapter End)	BNC Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock, Threaded
Impedance	50 Ohms
Mating Cycles	5000
Mounting Type	Free Hanging (In-Line)
Style	Straight

Part	Style	Convert From (Adapter End)	Mounting Type	Impedance	Dielectric Material	Fastening Type	Adapter Type	Convert To (Adapter End)	Center Gender	Mating Cycles	Conversion Type	Adapter Series
Hirose Electric USA, Inc. NP-BNCP(40)	Straight	N Plug Male Pin	Free Hanging (In-Line)	50 Ohms	Polytetrafluoroethylene (PTFE)	Bayonet Lock Threaded	Plug to Plug	BNC Plug Male Pin	Male to Male	5000	Between Series	BNC to N

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 61.30

General part information

Adapter Coaxial Connector N Plug, Male Pin To BNC Plug, Male Pin 50 Ohms
