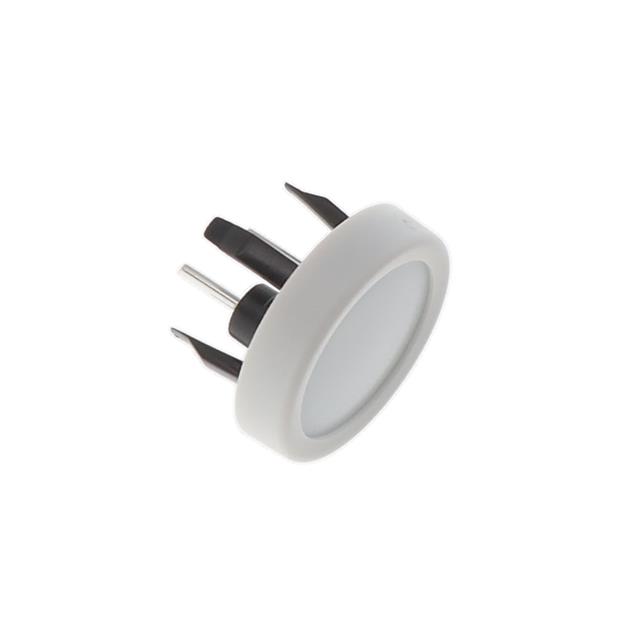

1241.1104.8098

Active

SCHURTER Inc.

SWITCH: PUSH-BUTTON; POS: 2; SPST-NO; 0.125A/48VDC; OFF-(ON)

Search across all available documentation for this part.

Active

SCHURTER Inc.

SWITCH: PUSH-BUTTON; POS: 2; SPST-NO; 0.125A/48VDC; OFF-(ON)

Technical Specifications

Parameters and characteristics for this part

Specification	1241.1104.8098

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPST-NO
Color - Actuator/Cap	White
Current Rating (Amps)	125 mA
Electrical Life	1000000 Cycles
Features	Tactile Feedback
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	13 mm
Switch Function	Off-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - DC	48 V

Part	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Actuator Type	Electrical Life	Type	Mounting Type	Color - Actuator/Cap	Termination Style	Current Rating (Amps)	Features	Operating Temperature [Min]	Operating Temperature [Max]	Mechanical Life	Actuator Marking	Ingress Protection	Circuit	Switch Function
SCHURTER Inc. 1241.1104.8098	13 mm	48 V	Button Flush Round	1000000 Cycles	Standard	Panel Mount Snap-In	White	Solder Lug	125 mA	Tactile Feedback	-25 °C	60 °C	1000000 Cycles	No Marking	IP65 - Dust Tight Water Resistant	SPST-NO	Off-Mom
SCHURTER Inc. 1241.1104.7091	13 mm	48 V	Button Flush Round	1000000 Cycles	Standard	Panel Mount Snap-In	Yellow	Solder Lug	125 mA	Tactile Feedback	-25 °C	60 °C	1000000 Cycles	No Marking	IP65 - Dust Tight Water Resistant	SPST-NO	Off-Mom
SCHURTER Inc. 1241.1104.7059	13 mm	48 V	Button Flush Round	1000000 Cycles	Standard	Panel Mount Snap-In		Solder Lug	125 mA	Tactile Feedback	-25 °C	60 °C	1000000 Cycles	No Marking	IP65 - Dust Tight Water Resistant	SPST-NO	Off-Mom
SCHURTER Inc. 1241.1104.7097	13 mm	48 V	Button Flush Round	1000000 Cycles	Standard	Panel Mount Snap-In	Black	Solder Lug	125 mA	Tactile Feedback	-25 °C	60 °C	1000000 Cycles	No Marking	IP65 - Dust Tight Water Resistant	SPST-NO	Off-Mom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Snap-In
