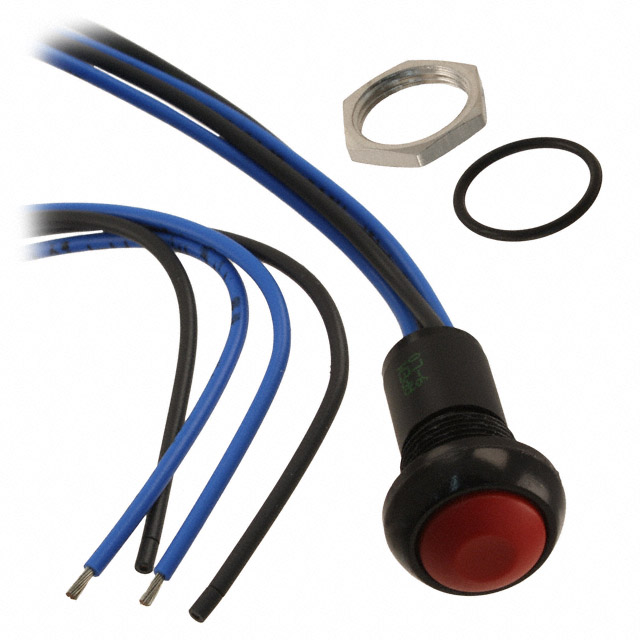

IPR5FAD6

Active

APEM

SWITCH PUSH SPDT 0.5A 48V

Search across all available documentation for this part.

Active

APEM

SWITCH PUSH SPDT 0.5A 48V

Technical Specifications

Parameters and characteristics for this part

Specification	IPR5FAD6

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPDT
Color - Actuator/Cap	Red
Current Rating (Amps)	200 mA, 500 mA
Electrical Life	500000 Cycles
Features	Tactile Feedback
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	13.6 mm
Switch Function	On-Mom
Termination Style	Wire Leads
Type	Standard
Voltage Rating - AC	48 V
Voltage Rating - DC	48 V

Part	Voltage Rating - AC	Color - Actuator/Cap	Panel Cutout Dimensions [diameter]	Mounting Type	Electrical Life	Current Rating (Amps)	Actuator Marking	Type	Ingress Protection	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Features	Switch Function	Actuator Type	Termination Style	Voltage Rating - DC
APEM IPR5FAD6	48 V	Red	13.6 mm	Panel Mount Front	500000 Cycles	200 mA 500 mA	No Marking	Standard	IP67 - Dust Tight Waterproof	SPDT	125 °C	-40 °C	Tactile Feedback	On-Mom	Button Round	Wire Leads	48 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPDT Standard Panel Mount, Front
