Technical Specifications

Parameters and characteristics for this part

Specification	16_N-50-7-31/133_NE

Body Finish	White Bronze
Body Material	Brass
Cable Group	393
Cable Group	RG-214
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	1000 VDC

16_N-50 Series

Part	Mating Cycles	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Cable Group	Body Finish	Connector Style	Mounting Type	Frequency - Max [Max]	Center Contact Material	Connector Type	Impedance	Contact Termination	Number of Ports	Center Contact Plating	Housing Color	Dielectric Material	Shield Termination	Voltage Rating	Cable Group
Huber+Suhner, Inc. 16_N-50-3-39/133_NH	500	Brass	-65 ░C	165 °C	LMR-195	White Bronze	N Type	Free Hanging (In-Line) Right Angle	11 GHz	Brass	Male Pin Plug	50 Ohms	Solder	1	Gold	Silver	Polytetrafluoroethylene (PTFE)	Crimp	1000 VDC
Huber+Suhner, Inc. 16_N-50-12-60/033_-E	500	Brass	-40 °C	85 °C		White Bronze	N Type	Free Hanging (In-Line) Right Angle	11 GHz	Brass	Male Pin Plug	50 Ohms	Crimp	1	Silver	Silver	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Clamp	1000 VDC
Huber+Suhner, Inc. 16_N-50-10-1/103_UV	500	Brass	-65 ░C	165 °C		Silver	N Type	Free Hanging (In-Line) Right Angle	11 GHz	Brass	Male Pin Plug	50 Ohms	Solder	1	Gold	Silver	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Crimp	1000 VDC
Huber+Suhner, Inc. 16_N-50-4-14/133_NE	500	Brass	-65 ░C	165 °C		White Bronze	N Type	Free Hanging (In-Line) Right Angle	11 GHz	Brass	Male Pin Plug	50 Ohms	Solder	1	Gold	Silver	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Crimp	1000 VDC
Huber+Suhner, Inc. 16_N-50-7-28/133_NE	500	Brass	-65 ░C	165 °C	393 RG-225	White Bronze	N Type	Free Hanging (In-Line) Right Angle	11 GHz	Brass Bronze	Male Pin Plug	50 Ohms	Crimp	1	Gold	Silver	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Crimp	1000 VDC
Huber+Suhner, Inc. 16_N-50-9-6/033_-E	500	Brass	-40 °C	85 °C	Helical	White Bronze	N Type	Free Hanging (In-Line) Right Angle	11 GHz	Brass Bronze	Male Pin Plug	50 Ohms	Crimp	1	Silver	Silver		Clamp	1000 VDC	0.5 in
Huber+Suhner, Inc. 16_N-50-7-50/133_NE	500	Brass	-40 °C	160 °C	LMR-400	White Bronze	N Type	Free Hanging (In-Line) Right Angle	11 GHz	Brass	Male Pin Plug	50 Ohms	Crimp	1	Gold	Silver	Polytetrafluoroethylene (PTFE)	Clamp	1000 VDC
Huber+Suhner, Inc. 16_N-50-4-121/133_NE	500	Brass	-65 ░C	165 °C	LMR-240	White Bronze	N Type	Free Hanging (In-Line) Right Angle	18 GHz	Brass	Male Pin Plug	50 Ohms	Solder	1	Gold	Silver	Polytetrafluoroethylene (PTFE)	Crimp	1000 VDC
Huber+Suhner, Inc. 16_N-50-7-77/133_NE	500	Brass	-65 ░C	165 °C	LMR-400	White Bronze	N Type	Free Hanging (In-Line) Right Angle	11 GHz	Brass	Male Pin Plug	50 Ohms	Solder	1	Gold	Silver		Crimp	1000 VDC
Huber+Suhner, Inc. 16_N-50-7-31/133_NE	500	Brass	-65 ░C	165 °C	RG-214	White Bronze	N Type	Free Hanging (In-Line) Right Angle	11 GHz	Brass	Male Pin Plug	50 Ohms	Solder	1	Gold	Silver	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Crimp	1000 VDC	393

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 30.38

Description

General part information

16_N-50 Series

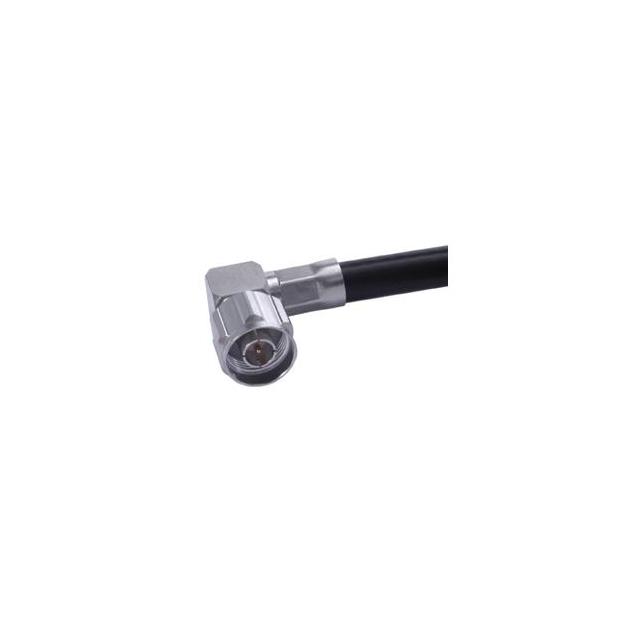

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
