SAC57D54HCVLT
ActiveFreescale Semiconductor - NXP
ARM 32-BIT MCU, TRIPLE CORE, 4MB FLASH, 1.3MB GRAM, 1MB SYSRAM, -40/+105DEGC, LQFP 208/ TRAY ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsTechnical Data Sheet EN
SAC57D54HCVLT
ActiveFreescale Semiconductor - NXP
ARM 32-BIT MCU, TRIPLE CORE, 4MB FLASH, 1.3MB GRAM, 1MB SYSRAM, -40/+105DEGC, LQFP 208/ TRAY ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsTechnical Data Sheet EN
Technical Specifications
Parameters and characteristics for this part
| Specification | SAC57D54HCVLT |
|---|---|
| Connectivity | CANbus, LINbus, EBI/EMI, SPI, Ethernet, I2C |
| Core Processor | ARM® Cortex®-A5/M4/M0+ |
| Core Size | 32-Bit Tri-Core |
| Data Converters [custom] | 12 |
| Data Converters [custom] | 24 |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | Internal |

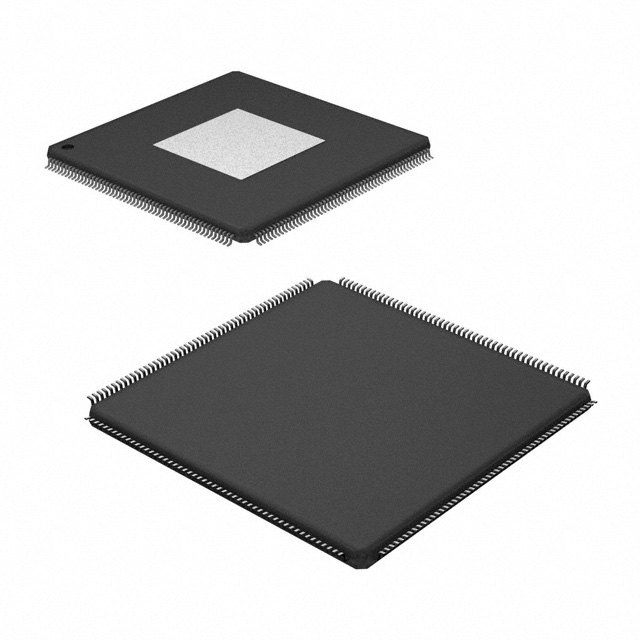

| Package / Case | 208-LQFP Exposed Pad |
| Peripherals | POR, PWM, DMA, WDT, LCD, LVD/HVD |
| Program Memory Size | 4 MB |
| Program Memory Type | FLASH |
| RAM Size | 2.3 M |
| Speed | 160 MHz, 320 MHz, 80 MHz |
| Supplier Device Package | 208-LQFP (28x28) |
| Voltage - Supply (Vcc/Vdd) [Max] | 5.5 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 3.15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
SAC57 Series
ARM® Cortex®-A5/M4/M0+ MAC57Dxxx Microcontroller IC 32-Bit Tri-Core 80MHz, 160MHz, 320MHz 4MB (4M x 8) FLASH 208-LQFP (28x28)
