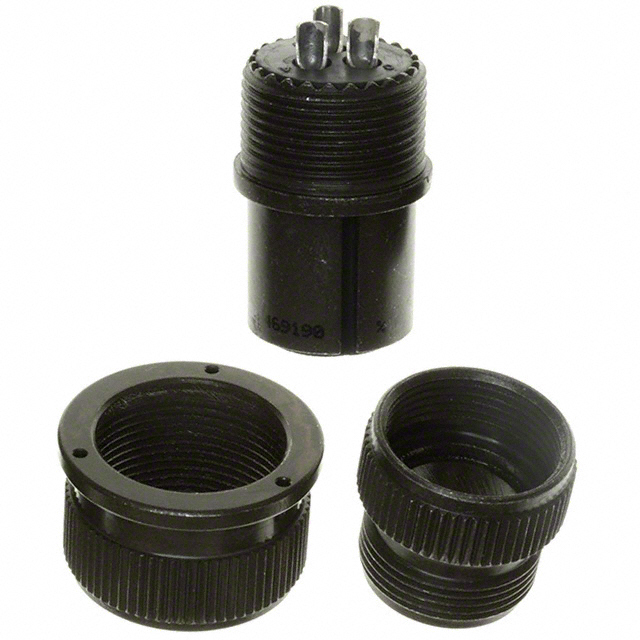

MS3106A16-10S

Active

Amphenol Industrial Operations

CONN PLUG FMALE 3P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MS3106A16-10S

Active

Amphenol Industrial Operations

CONN PLUG FMALE 3P SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3106A16-10S

Applications	Military, Marine
Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Features	Coupling Nut, Backshell
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	16-10
Shielding	Unshielded

MS3106A16 Series

Part	Shell Size - Insert	Color	Shell Finish	Insert Material	Shell Material	Orientation	Contact Material	Number of Positions	Shielding	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Features	Applications	Qualification	Connector Type	Mounting Type	Contact Finish - Mating
Amphenol Industrial Operations MS3106A16-11P	16-11	Olive Drab	Olive Drab Chromate over Cadmium	Neoprene	Aluminum Alloy	N	Copper Alloy	2	Unshielded	Metal	-55 °C	125 °C	Backshell Coupling Nut	Marine Military	MIL-DTL-5015	Male Pins Plug	Free Hanging (In-Line)	Silver
Amphenol Industrial Operations MS3106A16-12P
Amphenol Industrial Operations MS3106A16-7S
Amphenol Industrial Operations MS3106A16-13S
Amphenol Industrial Operations MS3106A16S-1SW-RES
Amphenol Industrial Operations MS3106A16S-5SY	16S-5	Olive Drab	Olive Drab Chromate over Cadmium	Neoprene	Aluminum Alloy	Y	Copper Alloy		Unshielded	Metal	-55 °C	125 °C	Backshell Coupling Nut	Marine Military	MIL-DTL-5015	Female Sockets Plug	Free Hanging (In-Line)	Silver
Amphenol Industrial Operations MS3106A16S-4P-RES
Amphenol Industrial Operations MS3106A16-10S	16-10	Olive Drab	Olive Drab Chromate over Cadmium	Neoprene	Aluminum Alloy	N	Copper Alloy		Unshielded	Metal	-55 °C	125 °C	Backshell Coupling Nut	Marine Military	MIL-DTL-5015	Female Sockets Plug	Free Hanging (In-Line)	Silver
Amphenol Industrial Operations MS3106A16S-5P	16S-5	Olive Drab	Olive Drab Chromate over Cadmium	Neoprene	Aluminum Alloy	N	Copper Alloy		Unshielded	Metal	-55 °C	125 °C	Backshell Coupling Nut	Marine Military	MIL-DTL-5015	Male Pins Plug	Free Hanging (In-Line)	Silver
Amphenol Industrial Operations MS3106A16S-1S W/P CAP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.74
		10	$ 18.16
		25	$ 17.38
		50	$ 16.82
		100	$ 16.26
		250	$ 15.36
		500	$ 14.91

Description

General part information

MS3106A16 Series

3 Position Circular Connector Plug, Female Sockets Solder Cup
