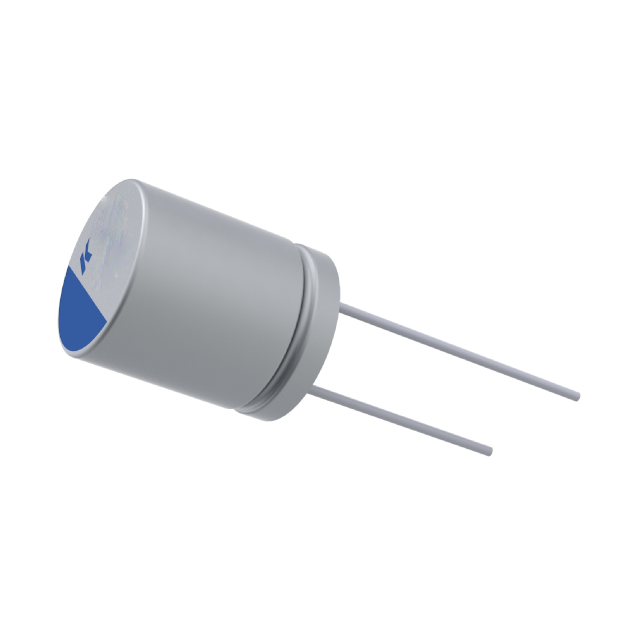

A750EK687M0JAAE008

Active

KEMET

CAP ALUM POLY 680UF 20% 6.3V TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet A750EK687M0JAAE008 Spec +1

A750EK687M0JAAE008

Active

KEMET

CAP ALUM POLY 680UF 20% 6.3V TH

Deep-Dive with AI

DocumentsDatasheet A750EK687M0JAAE008 Spec +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A750EK687M0JAAE008

Applications	General Purpose
Capacitance	680 µF
ESR (Equivalent Series Resistance)	8 mOhms
Height - Seated (Max) [Max]	0.354 in
Height - Seated (Max) [Max]	9 mm
Lead Spacing	0.098 in
Lead Spacing	2.5 mm
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Can
Ripple Current @ Low Frequency	250 mA
Size / Dimension [diameter]	0.248 in
Size / Dimension [diameter]	6.3 mm
Tolerance	20 %
Type	Polymer
Voltage - Rated	6.3 V

A750EK Series

Part	Type	Lifetime @ Temp.	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Mounting Type	Applications	Lead Spacing	Lead Spacing	Ripple Current @ Low Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage - Rated	Ripple Current @ High Frequency	Capacitance	Size / Dimension [diameter]	Size / Dimension [diameter]	ESR (Equivalent Series Resistance)
KEMET EA750EK107M1CAA	Polymer	2000 Hrs	Radial Can	105 ░C	-55 °C	20 %	Through Hole	General Purpose	0.098 in	2.5 mm	145 mA	0.354 in	9 mm	16 V	2.9 A	100 µF	0.248 in	6.3 mm
KEMET A750EK277M1AAAE010	Polymer	2000 Hrs	Radial Can	105 ░C	-55 °C	20 %	Through Hole	General Purpose	0.098 in	2.5 mm	234 mA	0.354 in	9 mm	10 V	4.68 A	270 µF	0.248 in	6.3 mm	10 mOhm
KEMET A750EK827M0EAAE007	Polymer	2000 Hrs	Radial Can	105 ░C	-55 °C	20 %	Through Hole	General Purpose	0.098 in	2.5 mm	280 mA	0.354 in	9 mm	2.5 V	5.6 A	820 µF	0.248 in	6.3 mm	7 mOhms
KEMET A750EK477M0EAAE007	Polymer	2000 Hrs	Radial Can	105 ░C	-55 °C	20 %	Through Hole	General Purpose	0.098 in	2.5 mm	280 mA	0.354 in	9 mm	2.5 V	5.6 A	470 µF	0.248 in	6.3 mm	7 mOhms
KEMET EA750EK227M1AAA	Polymer	2000 Hrs	Radial Can	105 ░C	-55 °C	20 %	Through Hole	General Purpose	0.098 in	2.5 mm	155 mA	0.354 in	9 mm	10 V	3.1 A	220 µF	0.248 in	6.3 mm
KEMET A750EK687M0JAAE008	Polymer	2000 Hrs	Radial Can	105 ░C	-55 °C	20 %	Through Hole	General Purpose	0.098 in	2.5 mm	250 mA	0.354 in	9 mm	6.3 V		680 µF	0.248 in	6.3 mm	8 mOhms
KEMET A750EK337M0EAAE007	Polymer	2000 Hrs	Radial Can	105 ░C	-55 °C	20 %	Through Hole	General Purpose	0.098 in	2.5 mm	280 mA	0.354 in	9 mm	2.5 V	5.6 A	330 µF	0.248 in	6.3 mm	7 mOhms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.43
		10	$ 0.29
		100	$ 0.19
		1000	$ 0.13
		5000	$ 0.11
		10000	$ 0.10

Description

General part information

A750EK Series

680 µF 6.3 V Aluminum - Polymer Capacitors Radial, Can 8mOhm 2000 Hrs @ 105°C

Documents

Technical documentation and resources

Datasheet

A750EK687M0JAAE008 Spec

Datasheet

KEM_A4067_A750.pdf

Datasheet
