LQW04CAR29K00D

Obsolete

Murata Power Solutions Inc.

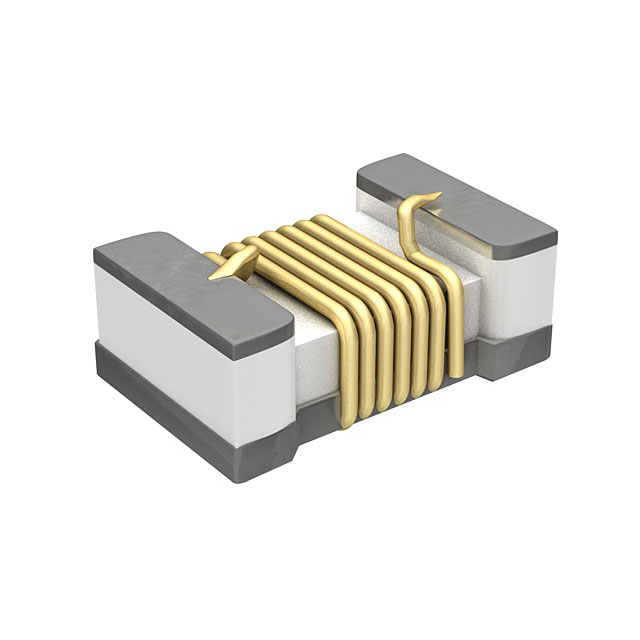

FIXED IND 290NH 270MA 940MOHM SM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LQW04CAR29K00D

Obsolete

Murata Power Solutions Inc.

FIXED IND 290NH 270MA 940MOHM SM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LQW04CAR29K00D

Current Rating (Amps)	270 mA
DC Resistance (DCR) [Max]	940 mOhm
Frequency - Self Resonant	1.4 GHz
Height - Seated (Max) [Max] [z]	0.022 in
Height - Seated (Max) [Max] [z]	0.55 mm
Inductance	290 nH
Inductance Frequency - Test	100 MHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	0805 Metric
Package / Case	0302
Shielding	Unshielded
Size / Dimension [x]	0.033 "
Size / Dimension [x]	0.85 mm
Size / Dimension [y]	0.02 in
Size / Dimension [y]	0.5 mm
Supplier Device Package	03019 (0805 Metric)
Tolerance	10 %
Type	Wirewound, Drum Core

LQW04CA Series

Part	DC Resistance (DCR) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Frequency - Self Resonant	Current Rating (Amps)	Inductance	Tolerance	Type	Package / Case	Package / Case	Shielding	Mounting Type	Supplier Device Package	Material - Core	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Inductance Frequency - Test	DC Resistance (DCR)
Murata Power Solutions Inc. LQW04CAR51K00D	1.31 Ohm	0.022 in	0.55 mm	700 MHz	0.2 A	510 nH	10 %	Drum Core Wirewound	0805 Metric	0302	Unshielded	Surface Mount	03019 (0805 Metric)	Ferrite	85 °C	-40 °C	0.033 "	0.02 in	0.5 mm	0.85 mm	100 MHz
Murata Power Solutions Inc. LQW04CAR12K00D	280 mOhm	0.022 in	0.55 mm	2.1 GHz	0.51 A	120 nH	10 %	Drum Core Wirewound	0805 Metric	0302	Unshielded	Surface Mount	03019 (0805 Metric)	Ferrite	85 °C	-40 °C	0.033 "	0.02 in	0.5 mm	0.85 mm	100 MHz
Murata Power Solutions Inc. LQW04CAR29K00D	940 mOhm	0.022 in	0.55 mm	1.4 GHz	270 mA	290 nH	10 %	Drum Core Wirewound	0805 Metric	0302	Unshielded	Surface Mount	03019 (0805 Metric)	Ferrite	85 °C	-40 °C	0.033 "	0.02 in	0.5 mm	0.85 mm	100 MHz
Murata Power Solutions Inc. LQW04CAR45K00D	1.23 Ohm	0.022 in	0.55 mm	850 MHz	0.2 A	450 nH	10 %	Drum Core Wirewound	0805 Metric	0302	Unshielded	Surface Mount	03019 (0805 Metric)	Ferrite	85 °C	-40 °C	0.033 "	0.02 in	0.5 mm	0.85 mm	100 MHz
Murata Power Solutions Inc. LQW04CA60NK00D		0.022 in	0.55 mm	3 GHz	0.62 A	60 nH	10 %	Drum Core Wirewound	0805 Metric	0302	Unshielded	Surface Mount	03019 (0805 Metric)	Ferrite	85 °C	-40 °C	0.033 "	0.02 in	0.5 mm	0.85 mm	100 MHz	180 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

LQW04CA Series

290 nH Unshielded Drum Core, Wirewound Inductor 270 mA 940mOhm Max 0302 (0805 Metric)
