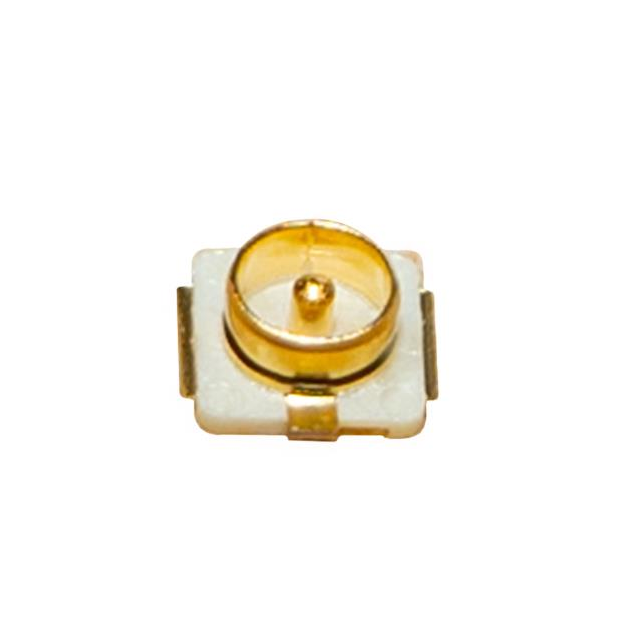

IPXSM66AL (I-PEX P/N 20279-001E-03)
ActiveLighthorse Technologies, Inc
I-PEX (MHF1) SMD RECEPTACLE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IPXSM66AL (I-PEX P/N 20279-001E-03)
ActiveLighthorse Technologies, Inc
I-PEX (MHF1) SMD RECEPTACLE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IPXSM66AL (I-PEX P/N 20279-001E-03) |
|---|---|
| Connector Style | IPEX MHFI, U.FL (UMCC) |
| Connector Type | Receptacle |
| Contact Termination | Solder |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 6000 MHz |
| Impedance | 50 Ohms |
| Mounting Type | Surface Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 1 | $ 0.75 | |
| 25 | $ 0.64 | |||
| 50 | $ 0.62 | |||
| 100 | $ 0.54 | |||
| 250 | $ 0.48 | |||
| 500 | $ 0.44 | |||
| 1000 | $ 0.37 | |||
| 2500 | $ 0.35 | |||
| 5000 | $ 0.32 | |||
Description
General part information
IPXSM66 Series
U.FL (UMCC), IPEX MHFI Connector Receptacle 50 Ohms Surface Mount Solder
