3101.0220

Active

SCHURTER Inc.

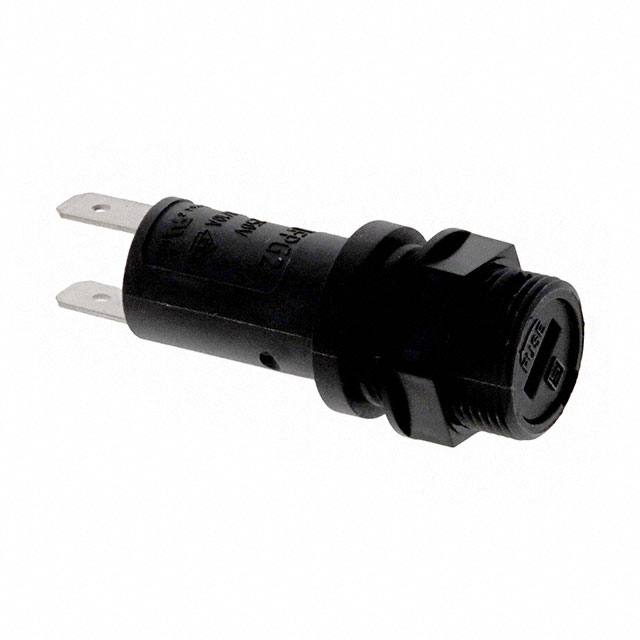

FUSE HOLDER; 10A; ON PANEL; BLACK; FPG2; 250VAC; UL94V-0; -40÷85°C

Search across all available documentation for this part.

Active

SCHURTER Inc.

FUSE HOLDER; 10A; ON PANEL; BLACK; FPG2; 250VAC; UL94V-0; -40÷85°C

Technical Specifications

Parameters and characteristics for this part

Specification	3101.0220

Contact Finish	Tin
Contact Material	Copper Alloy
Current Rating (Amps)	16 A
For Use With/Related Products [x]	5 mm
For Use With/Related Products [y]	20 mm
Fuse Size [diameter]	5 mm
Fuse Size [diameter]	0.197 in
Fuse Size [x]	0.787 in
Fuse Size [x]	20 mm
Fuse Type	Cartridge
Fuseholder Type	Holder
Number of Circuits	1
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage	500 V

Part	Voltage	Fuseholder Type	Number of Circuits	Contact Material	Current Rating (Amps)	Fuse Type	Termination Style	Contact Finish	For Use With/Related Products [y]	For Use With/Related Products [x]	Fuse Size [x]	Fuse Size [diameter]	Fuse Size [diameter]	Fuse Size [x]
SCHURTER Inc. 3101.0220	500 V	Holder	1	Copper Alloy	16 A	Cartridge	Quick Connect - 0.187" (4.7mm)	Tin	20 mm	5 mm	0.787 in	5 mm	0.197 in	20 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fuse Holder 16 A 500V 1 Circuit Cartridge Panel Mount
