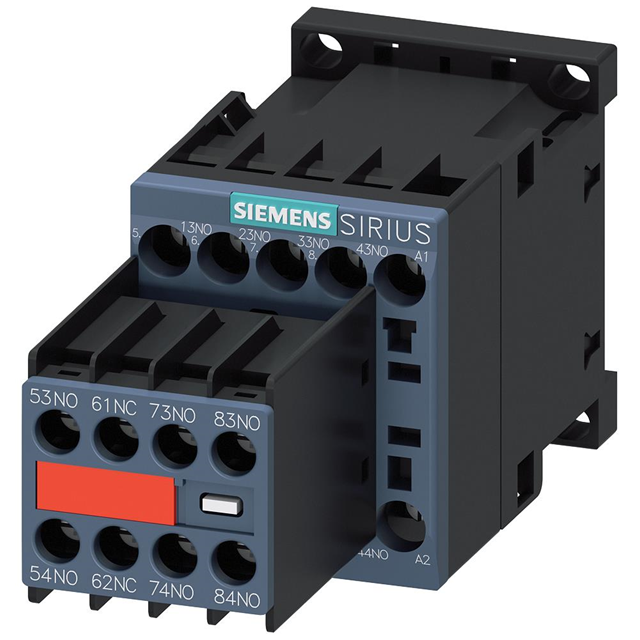

3RH22711AP60
ActiveSiemens
CONTROL RELAY 7NO+1NC AC 240V SC
Deep-Dive with AI
Search across all available documentation for this part.
3RH22711AP60
ActiveSiemens
CONTROL RELAY 7NO+1NC AC 240V SC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3RH22711AP60 |
|---|---|
| Coil Power | 37 VA |
| Coil Voltage | 240 VAC |
| Contact Form | 8PST-7NO/1NC (7 Form A, 1 Form B) |
| Contact Rating (Current) | 10 A |
| Features | Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 204 VAC |
| Operate Time | 33 ms |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -25 °C |
| Release Time | 15 ms |
| Switching Voltage | 690 VAC |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 154.01 | |
Description
General part information
3RH22711 Series
CONTROL RELAY 7NO+1NC AC 240V SC
