FWE050018A-10A
ActiveInventus Power

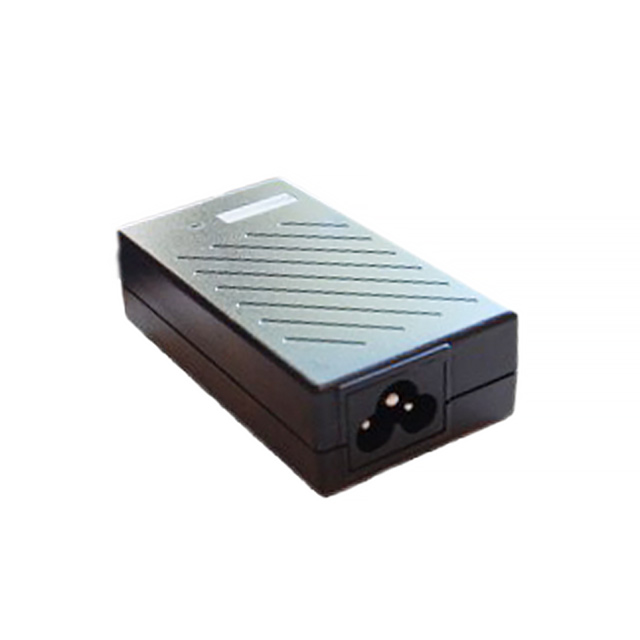

AC/DC DESKTOP ADAPTER 18V 50W
Deep-Dive with AI
Search across all available documentation for this part.
FWE050018A-10A
ActiveInventus Power
AC/DC DESKTOP ADAPTER 18V 50W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FWE050018A-10A |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cTUVus, CE, CCC, CB |
| Cord Length | 1.22 m |
| Cord Length | 48 in |
| Current - Output (Max) [Max] | 2.78 A |
| Efficiency | Level VI |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| No Load Power Consumption | 100 mW |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 5.5 mm, 2.5 mm |
| Output Connector [x] | 9.5 mm |
| Polarization | Positive Center |
| Power (Watts) | 50 W |
| Region Utilized | International |
| Size / Dimension [x] | 114.2 mm |
| Size / Dimension [x] | 4.5 in |
| Size / Dimension [y] | 2.26 in |
| Size / Dimension [y] | 57.5 mm |
| Size / Dimension [z] | 36.5 mm |
| Size / Dimension [z] | 1.44 " |
| Standard Number | 62368-1 |
| Voltage - Output | 18 V |
| Weight | 0.4 lb |
| Weight | 181.44 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 240 | $ 27.31 | |
Description
General part information
FWE050018 Series
18V 50 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
Documents
Technical documentation and resources
