201-0016-31

Active

Schmartboard, Inc.

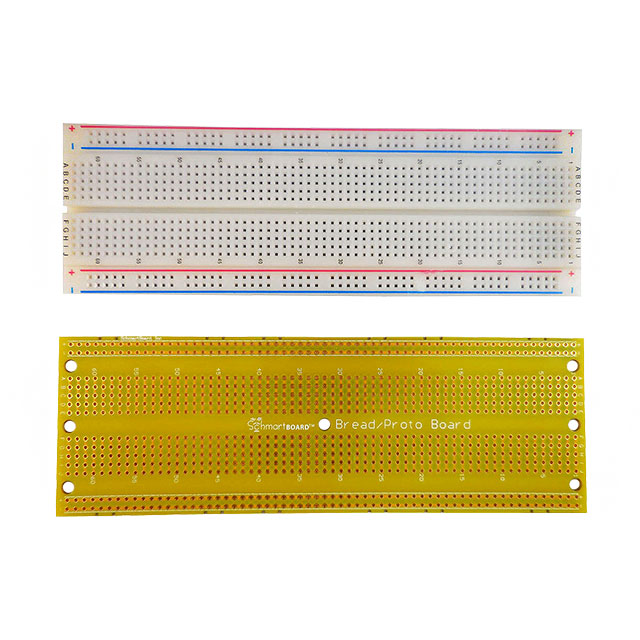

830 TIE POINT SCHMARTBOARD BREAD

Search across all available documentation for this part.

Active

Schmartboard, Inc.

830 TIE POINT SCHMARTBOARD BREAD

Technical Specifications

Parameters and characteristics for this part

Specification	201-0016-31

Includes	830 Point Breadboard
Number of 5-Tie Point Terminals	126
Number of Distribution Buses	2
Number of Terminal Strips	1
Number of Tie Points (Total)	830
Size / Dimension [x]	164.8 mm
Size / Dimension [x]	6.49 in
Size / Dimension [y]	2.1 in
Size / Dimension [y]	53.3 mm
Type	Terminal Strip (No Frame)

Part	Includes	Number of Tie Points (Total)	Type	Number of 5-Tie Point Terminals	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Number of Terminal Strips	Number of Distribution Buses
Schmartboard, Inc. 201-0016-31	830 Point Breadboard	830	Terminal Strip (No Frame)	126	164.8 mm	6.49 in	2.1 in	53.3 mm	1	2
Schmartboard, Inc. 201-0016-01		830	Terminal Strip (No Frame)	126	164.8 mm	6.49 in	2.1 in	53.3 mm	1	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 15.00

General part information

Solderless Breadboard Terminal Strip (No Frame) 6.49" L x 2.10" W (164.8mm x 53.3mm)
