CBTAAT0-HM18PN-0000

Active

ODU

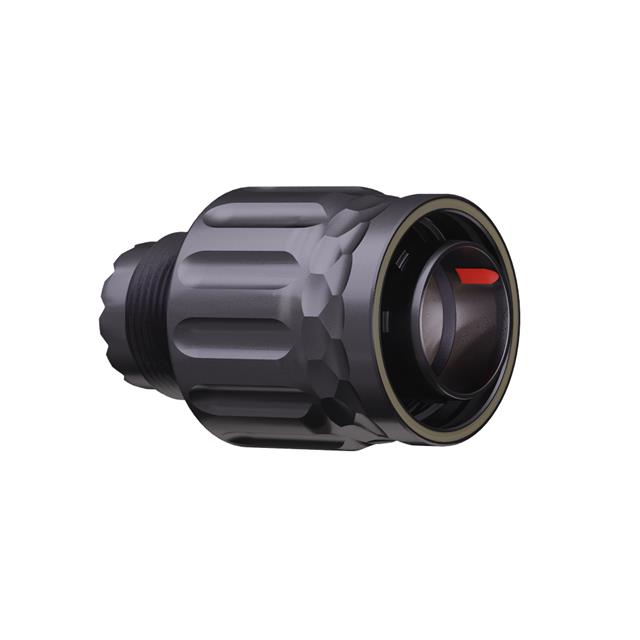

ODU AMC SERIES T SCREW-LOCK PLUG

Search across all available documentation for this part.

Active

ODU

ODU AMC SERIES T SCREW-LOCK PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	CBTAAT0-HM18PN-0000

Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Current Rating (Amps)	7.5 A, 5 A
Features	Coupling Nut, Backshell
Ingress Protection	IP68, IP69K
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	18
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	A
Primary Material	Metal
Shell Finish	Tin Nickel
Shell Material	Aluminum
Shell Size - Insert	12
Shielding	Shielded
Termination	Crimp
Voltage Rating	50 V

Part	Orientation	Connector Type	Ingress Protection	Color	Features	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Voltage Rating	Shielding	Primary Material	Number of Positions	Contact Material	Insert Material	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Material	Termination	Current Rating (Amps)	Mounting Type	Material Flammability Rating	Shell Size - Insert
ODU CBTAAT0-HM18PN-0000	A	Male Pins Plug	IP68 IP69K	Silver	Backshell Coupling Nut	-65 ░C	347 °F	Tin Nickel	50 V	Shielded	Metal	18	Copper Alloy	Polyetheretherketone (PEEK)	Gold	1.27 µm	50 µin	Aluminum	Crimp	5 A 7.5 A	Free Hanging (In-Line)	UL94 V-0	12

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 250.10

General part information

18 Position Circular Connector Plug, Male Pins Crimp
