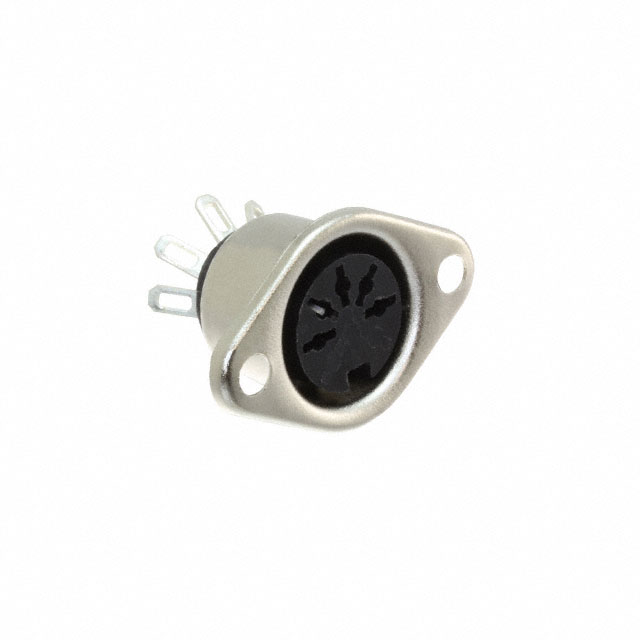

57GB5FX - 57GB5FX

57GB5FX

Active
Switchcraft Inc.

CONN CIRCULAR DIN SKT 5 POS SOLDER ST PANEL MOUNT 5 TERMINAL 1 PORT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
57GB5FX - 57GB5FX

57GB5FX

Active
Switchcraft Inc.

CONN CIRCULAR DIN SKT 5 POS SOLDER ST PANEL MOUNT 5 TERMINAL 1 PORT

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

Specification57GB5FX
ColorSilver
Connector TypeReceptacle, Female Sockets
Current Rating (Amps)3 A
Fastening TypePush-Pull
FeaturesGround
Insert MaterialPlastic
Mounting FeatureFlange
OrientationF
Primary MaterialMetal
Shell MaterialSteel
Shell Size - InsertDIN
ShieldingShielded
TerminationSolder Eyelet(s)
Voltage Rating34 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
ArrowN/A 8$ 6.44
10$ 6.38
25$ 6.32
100$ 6.26
DigikeyBulk 1$ 6.91
10$ 6.25
25$ 5.90
50$ 5.76
100$ 5.47
250$ 4.89
500$ 4.61
1000$ 4.03
2500$ 3.83
LCSCPiece 1$ 9.67
200$ 3.86
500$ 3.73
1000$ 3.67

Description

General part information

57GB5F Series

5 Position Circular Connector Receptacle, Female Sockets Solder Eyelet(s)

Documents

Technical documentation and resources

Datasheet

Datasheet
