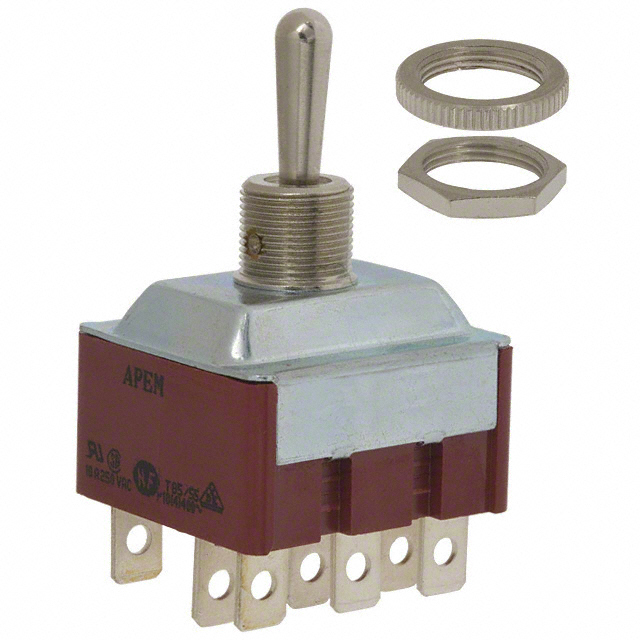

657H/2
ActiveAPEM
SWITCH TOGGLE 3PDT 10A 250V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
657H/2
ActiveAPEM
SWITCH TOGGLE 3PDT 10A 250V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 657H/2 |
|---|---|
| Actuator Length [x] | 17.5 mm |
| Actuator Material | Brass, Nickel Plated |
| Actuator Type | Standard Round |
| Bushing Thread | M12 |
| Bushing Thread | 0.75 |
| Circuit | 3PDT |
| Current Rating (Amps) | 10 A |
| Electrical Life | 10000 Cycles |
| Illumination | Non-Illuminated |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [diameter] | 12.2 mm |
| Switch Function | Mom-Off-Mom |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 36.67 | |
| 10 | $ 33.37 | |||
| 25 | $ 31.82 | |||
| 50 | $ 29.69 | |||
| 100 | $ 28.52 | |||
| 250 | $ 26.58 | |||
Description
General part information
657H Series
Toggle Switch 3PDT Panel Mount
