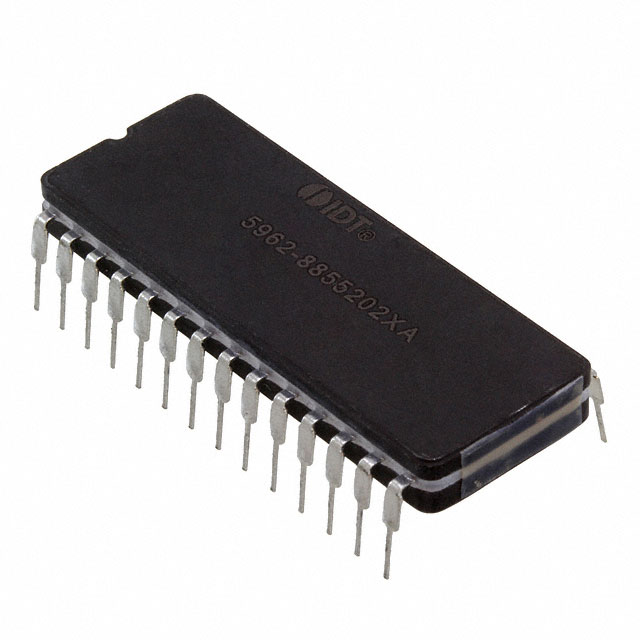

5962-8855202XA

Obsolete

Renesas Electronics Corporation

5.0V 32K X 8 ASYNCHRONOUS STATIC RAM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 71256S_L Data Sheet

5962-8855202XA

Obsolete

Renesas Electronics Corporation

5.0V 32K X 8 ASYNCHRONOUS STATIC RAM

Deep-Dive with AI

DocumentsDatasheet 71256S_L Data Sheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5962-8855202XA

Memory Format	SRAM
Memory Interface	Parallel
Memory Organization	32K x 8
Memory Size	32 KB
Memory Type	Volatile
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	15.24 mm
Package / Case	0.6 in
Package / Case	28-CDIP
Supplier Device Package	28-CDIP
Technology	SRAM - Asynchronous
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

5962-8855202 Series

5.0V 32K x 8 Asynchronous Static RAM

Part	Memory Organization	Mounting Type	Memory Size	Supplier Device Package	Memory Format	Write Cycle Time - Word, Page [custom]	Write Cycle Time - Word, Page [custom]	Package / Case	Package / Case	Package / Case	Technology	Access Time	Memory Type	Operating Temperature [Max]	Operating Temperature [Min]	Memory Interface	Voltage - Supply [Min]	Voltage - Supply [Max]
Renesas Electronics Corporation 5962-8855201UA	32K x 8	Through Hole	32 KB	28-CDIP	SRAM	100 ns	100 ns	7.62 mm	0.3 in	28-CDIP	SRAM - Synchronous	100 ns	Volatile	125 °C	-55 °C	Parallel	4.5 V	5.5 V
Renesas Electronics Corporation 5962-8855202XA	32K x 8	Through Hole	32 KB	28-CDIP	SRAM			15.24 mm	0.6 in	28-CDIP	SRAM - Asynchronous		Volatile	125 °C	-55 °C	Parallel	4.5 V	5.5 V
Renesas Electronics Corporation 5962-8855201XA	32K x 8	Through Hole	32 KB	28-CDIP	SRAM	100 ns	100 ns	15.24 mm	0.6 in	28-CDIP	SRAM - Synchronous	100 ns	Volatile	125 °C	-55 °C	Parallel	4.5 V	5.5 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

5962-8855202 Series

The 5962-88552 (71256 SRAM) is organized as 32K x 8. This part offers a reduced power standby mode for significant system level power and cooling savings. It also offers a battery backup data retention capability allowing operation off a 2V battery. Fully static asynchronous circuitry is used; no clocks or refreshes are required for operation.
