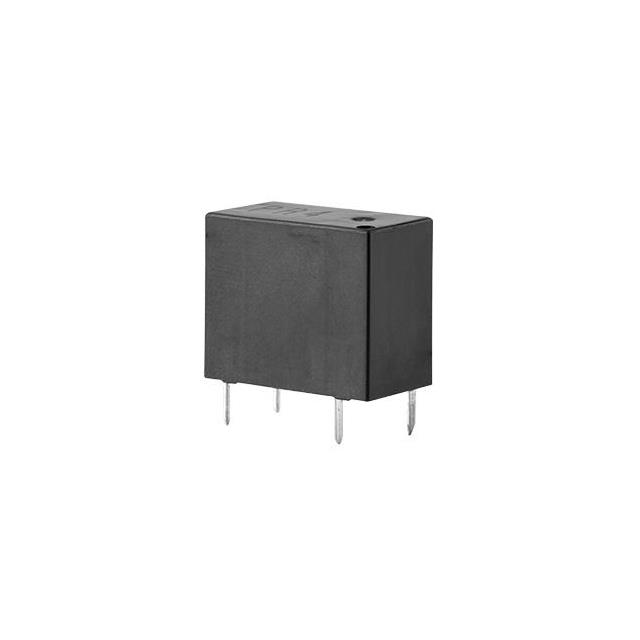

PR4-5V-450-1A
ActiveCUI Devices
RELAY GEN PURPOSE SPST 5A 5V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PR4-5V-450-1A |
|---|---|
| Coil Current | 89.9 mA |
| Coil Resistance | 55.6 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 5 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Alloy |
| Contact Rating (Current) | 5 A |
| Load - Max Switching | 1385 VA, 150 W |
| Mounting Type | Through Hole |
| Must Operate Voltage | 3.5 VDC |
| Must Release Voltage | 0.5 VDC |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 5 ms |
| Switching Voltage | 277 VAC, 30 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 0.99 | |
| 10 | $ 0.93 | |||
| 25 | $ 0.83 | |||
| 50 | $ 0.79 | |||
| 100 | $ 0.75 | |||
| 300 | $ 0.66 | |||
| 500 | $ 0.62 | |||
| 1000 | $ 0.58 | |||
| 5000 | $ 0.56 | |||
Description
General part information
PR4-5V Series
General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
