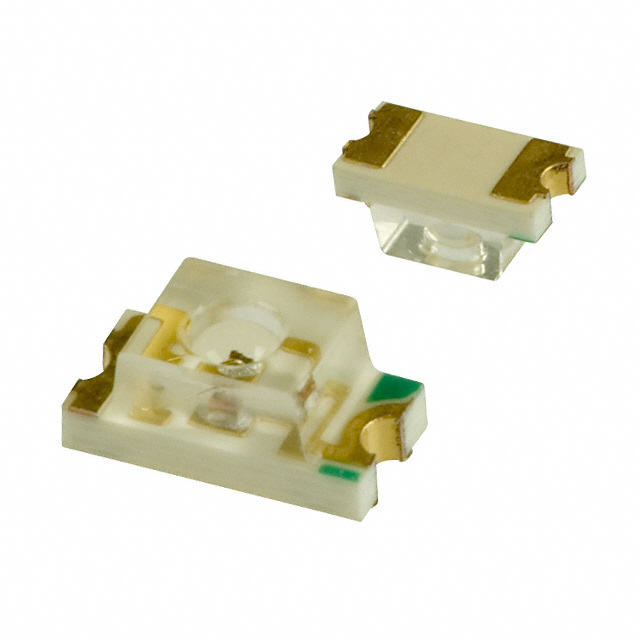

VFA1101W-5AY3B2-TR
ActiveStanley Electric Co
LED UNI-COLOR ORANGE 608NM 2-PIN T/R
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VFA1101W-5AY3B2-TR
ActiveStanley Electric Co
LED UNI-COLOR ORANGE 608NM 2-PIN T/R
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VFA1101W-5AY3B2-TR |
|---|---|
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] | 1.5 mm |
| Lens Color | Colorless |
| Lens Size [x] | 2 mm |
| Lens Size [y] | 1.5 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating | 12.4 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3016 Metric) |
| Size / Dimension [x] | 3 mm |
| Size / Dimension [y] | 1.5 mm |
| Viewing Angle | 140 ° |
| Voltage - Forward (Vf) (Typ) | 1.9 V |
| Wavelength - Dominant | 605 nm |
| Wavelength - Peak | 608 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.46 | |
| 10 | $ 0.31 | |||
| 100 | $ 0.20 | |||
| 500 | $ 0.14 | |||
| 1000 | $ 0.12 | |||
| Digi-Reel® | 1 | $ 0.46 | ||
| 10 | $ 0.31 | |||
| 100 | $ 0.20 | |||
| 500 | $ 0.14 | |||
| 1000 | $ 0.12 | |||
| Tape & Reel (TR) | 2500 | $ 0.11 | ||
| 5000 | $ 0.10 | |||
| 12500 | $ 0.09 | |||
| 25000 | $ 0.09 | |||
| 62500 | $ 0.08 | |||
| 125000 | $ 0.07 | |||
Description
General part information
VFA1101 Series
Orange 605nm LED Indication - Discrete 1.9V 1206 (3016 Metric)
