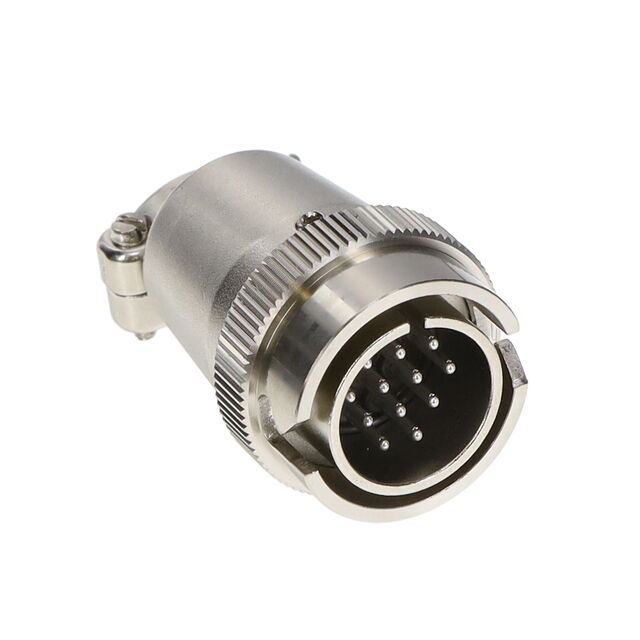

RM15QPS-12PH(81)

Active

Hirose Electric USA, Inc.

CONN RCPT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RM15QPS-12PH(81)

Active

Hirose Electric USA, Inc.

CONN RCPT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RM15QPS-12PH(81)

Cable Opening [Max] [custom]	0.453 in
Cable Opening [Max] [custom]	11.5 mm
Cable Opening [Min] [custom]	6.5 mm
Cable Opening [Min] [custom]	0.256 in
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Push-Twist
Features	Cable Clamp, Coupling Nut, Backshell
Insert Material	Diallyl Phthalate (DAP)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	12
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	15
Shielding	Unshielded
Voltage Rating	350 VAC, 490 VDC

RM15QPS Series

Part	Material Flammability Rating	Features	Number of Positions	Insert Material	Connector Type	Shell Finish	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Primary Material	Contact Material	Cable Opening [custom]	Cable Opening [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Color	Mounting Type	Fastening Type	Shell Material	Voltage Rating	Backshell Material, Plating	Shell Size - Insert	Orientation	Current Rating (Amps)	Shielding	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Termination
Hirose Electric USA, Inc. RM15QPS-2PA(71)	UL94 V-0	Backshell Cable Clamp Coupling Nut	2	Diallyl Phthalate (DAP)	Male Pins Plug	Nickel	Silver	78.7 µin	2 µm	Metal	Copper Alloy	11.3 mm	0.445 in	-25 °C	85 °C	Silver	Free Hanging (In-Line)	Push-Twist	Zinc Alloy	600 VAC 840 VDC	Nickel Zinc Alloy	15	Keyed	10 A
Hirose Electric USA, Inc. RM15QPS-8S(81)	UL94 V-0	Backshell Cable Clamp Coupling Nut	8	Diallyl Phthalate (DAP)	Female Sockets Plug	Nickel	Silver			Metal	Copper Alloy			-25 °C	85 °C	Silver	Free Hanging (In-Line)	Push-Twist	Zinc Alloy	500 VAC 700 VDC		15	Keyed	5 A	Unshielded	6.5 mm	0.453 in	0.256 in	11.5 mm
Hirose Electric USA, Inc. RM15QPS-12PH(81)	UL94 V-0	Backshell Cable Clamp Coupling Nut	12	Diallyl Phthalate (DAP)	Male Pins Plug	Nickel	Silver			Metal	Copper Alloy			-25 °C	85 °C	Silver	Free Hanging (In-Line)	Push-Twist	Zinc Alloy	350 VAC 490 VDC		15	Keyed	5 A	Unshielded	6.5 mm	0.453 in	0.256 in	11.5 mm
Hirose Electric USA, Inc. RM15QPS-8S(76)	UL94 V-0	Backshell Cable Clamp Coupling Nut	8		Female Sockets Plug		Silver							-25 °C	85 °C	Silver	Free Hanging (In-Line)	Push-Twist		500 VAC 700 VDC		15	Keyed	5 A	Unshielded	5 mm	0.315 in	0.197 in	8 mm
Hirose Electric USA, Inc. RM15QPS-4SA(81)			4	Polyphenylene Sulfide (PPS)	Female Sockets Plug		Silver			Metal	Copper Alloy	11.5 mm	0.453 in	-25 °C	85 °C		Free Hanging (In-Line)	Push-Twist				15	Keyed	10 A	Unshielded					Solder
Hirose Electric USA, Inc. RM15QPS-12S(76)	UL94 V-0	Backshell Cable Clamp Coupling Nut	12		Female Sockets Plug		Silver							-25 °C	85 °C	Silver	Free Hanging (In-Line)	Push-Twist		350 VAC 490 VDC		15	Keyed	5 A	Unshielded	5 mm	0.315 in	0.197 in	8 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	20	$ 22.04

Description

General part information

RM15QPS Series

12 Position Circular Connector Plug, Male Pins Solder Cup
