L-11-6-W

Active

3M (TC)

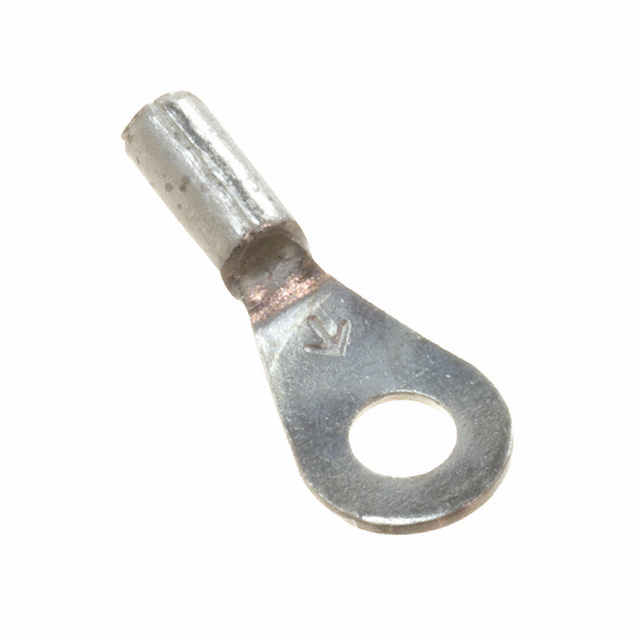

22-18 AWG NON-INSULATED BRAZED SEAM RING TONGUE TERMINAL

Search across all available documentation for this part.

Active

3M (TC)

22-18 AWG NON-INSULATED BRAZED SEAM RING TONGUE TERMINAL

Technical Specifications

Parameters and characteristics for this part

Part	Insulation	Termination	Terminal Type	Wire Gauge [Max]	Wire Gauge [Min]	Mounting Type	Features	Length - Overall [x]	Length - Overall [x]	Thickness	Thickness	Width - Outer Edges	Width - Outer Edges [y]	Contact Finish	Contact Material	Stud/Tab Size	Insulation Diameter	Insulation Diameter [diameter]	Color	Length - Overall	Material - Insulation
3M (TC) L-11-6-W	Non-Insulated	Crimp	Circular	22 AWG	17.5 AWG	Free Hanging (In-Line)	Brazed Seam	18.8 mm	0.74 in	0.03 in	0.76 mm	7.87 mm	0.31 in	Tin	Copper	6 Stud
3M (TC) L-11-6-P	Insulated	Crimp	Circular	22 AWG	17.5 AWG	Free Hanging (In-Line)	Butted Seam		0.93 in	0.03 in	0.76 mm	7.87 mm	0.31 in	Tin	Copper ETP	6 Stud	3.68 mm	0.145 "	Red	23.62 mm	Vinyl

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Ring Terminal Connector 6 Stud Circular 18-22 AWG Crimp
