1424530

Active

Phoenix Contact

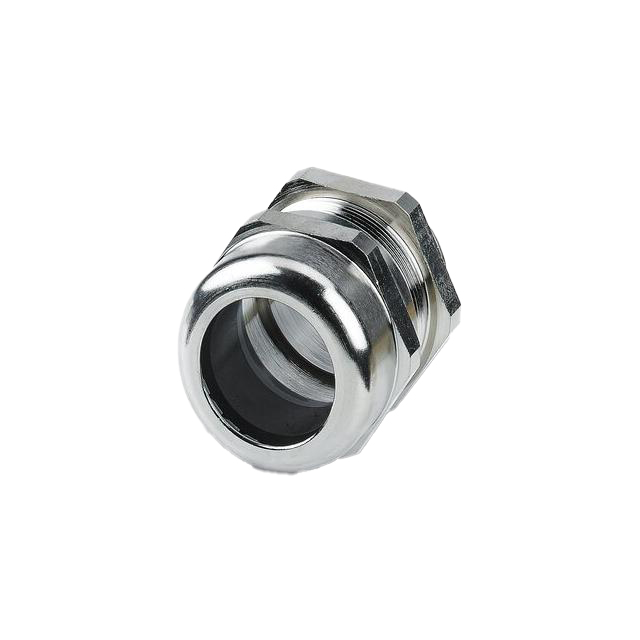

CABLE GLAND 22-32MM M50 BRASS

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 22-32MM M50 BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	1424530

Color	Silver
Includes	O-Ring, Seal
Ingress Protection	IP66, IP68, IP69
Material	Brass, Nickel Plated
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max]	32 mm
Outside Cable Diameter (Max) [Max]	1.26 in
Outside Cable Diameter (Min) [Min] [diameter]	22 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.866 in
Thread Length	0.354 in
Thread Length	9 mm
Thread Size	M50x1.5
Type	Cable Gland

Part	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Includes	Material	Thread Length	Thread Length	Thread Size	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Type	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Color
Phoenix Contact 1411138	1.417 in	36 mm	Seal	Polyamide (PA) Nylon	0.709 in	18.01 mm	M50	IP66/IP68	100 °C	-40 °C	Cable Gland	1.181 in	30 mm	Black
Phoenix Contact 1424530	1.26 in	32 mm	O-Ring Seal	Brass Nickel Plated	0.354 in	9 mm	M50x1.5	IP66 IP68 IP69	100 °C	-40 °C	Cable Gland	0.866 in	22 mm	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 26.74
LCSC	Piece	1	$ 11.22

General part information

Cable Gland Brass, Nickel Plated M50x1.5 Silver
