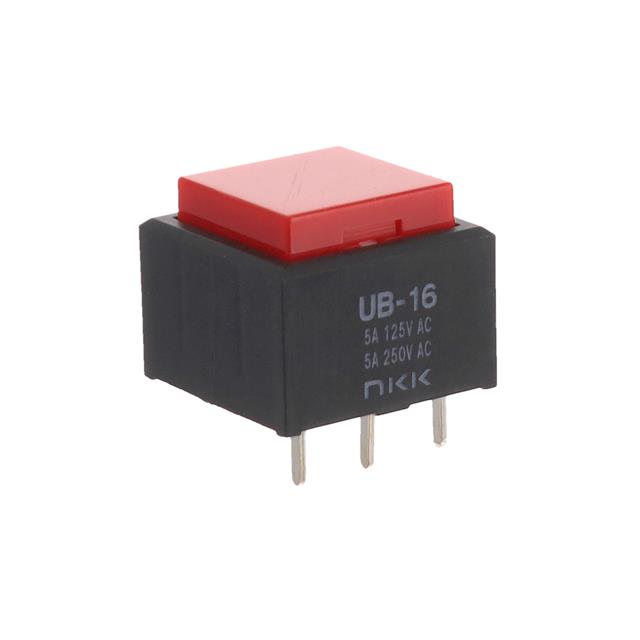

UB16SKW03N-C

Active

NKK Switches

SWITCH PUSHBUTTON SPDT 5A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UB16SKW03N-C

Active

NKK Switches

SWITCH PUSHBUTTON SPDT 5A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UB16SKW03N-C

Actuator Marking	No Marking
Actuator Type	Button, Square
Circuit	SPDT
Color - Actuator/Cap	Red
Current Rating (Amps)	5 A
Electrical Life	10000 Cycles
Features	Process Sealed
Mechanical Life	200000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Switch Function	On-On
Termination Style	PC Pin
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

UB16SKW Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Marking	Termination Style	Features	Mounting Type	Voltage Rating - DC	Current Rating (Amps)	Switch Function	Color - Actuator/Cap	Type	Circuit	Voltage Rating - AC	Mechanical Life	Actuator Type	Electrical Life	Illumination Type, Color	Illumination Voltage (Nominal)
NKK Switches UB16SKW03N-C	-20 C	70 °C	No Marking	PC Pin	Process Sealed	Through Hole	30 V	5 A	On-On	Red	Standard	SPDT	125 V	200000 Cycles	Button Square	10000 Cycles
NKK Switches UB16SKW035F-JJ	-25 °C	50 °C	No Marking	PC Pin	Process Sealed	Through Hole	30 V	5 A	On-On	Clear	Illuminated Standard	SPDT	125 V	200000 Cycles	Button Square	10000 Cycles	Green LED	2.1 VDC
NKK Switches UB16SKW035C-JJ	-25 °C	50 °C	No Marking	PC Pin	Process Sealed	Through Hole	30 V	5 A	On-On	Clear	Illuminated Standard	SPDT	125 V	200000 Cycles	Button Square	10000 Cycles	LED Red	1.85 VDC
NKK Switches UB16SKW035C	-25 °C	50 °C	No Marking	PC Pin	Process Sealed	Through Hole	30 V	5 A	On-On		Illuminated Standard	SPDT	125 V	200000 Cycles	Plunger for Cap	10000 Cycles	LED Red	1.85 VDC
NKK Switches UB16SKW035D-JB	-25 °C	50 °C	No Marking	PC Pin	Process Sealed	Through Hole	30 V	5 A	On-On	Clear	Illuminated Standard	SPDT	125 V	200000 Cycles	Button Square	10000 Cycles	Amber LED	2 VDC
NKK Switches UB16SKW035F-JF	-25 °C	50 °C	No Marking	PC Pin	Process Sealed	Through Hole	30 V	5 A	On-On	Clear	Illuminated Standard	SPDT	125 V	200000 Cycles	Button Square	10000 Cycles	Green LED	2.1 VDC
NKK Switches UB16SKW03N-B	-20 C	70 °C	No Marking	PC Pin	Process Sealed	Through Hole	30 V	5 A	On-On	White	Standard	SPDT	125 V	200000 Cycles	Button Square	10000 Cycles
NKK Switches UB16SKW035D	-25 °C	50 °C	No Marking	PC Pin	Process Sealed	Through Hole	30 V	5 A	On-On		Illuminated Standard	SPDT	125 V	200000 Cycles	Plunger for Cap	10000 Cycles	Amber LED	2 VDC
NKK Switches UB16SKW035C-CC	-25 °C	50 °C	No Marking	PC Pin	Process Sealed	Through Hole	30 V	5 A	On-On	Red	Illuminated Standard	SPDT	125 V	200000 Cycles	Button Square	10000 Cycles	LED Red	1.85 VDC
NKK Switches UB16SKW035D-JD	-25 °C	50 °C	No Marking	PC Pin	Process Sealed	Through Hole	30 V	5 A	On-On	Clear	Illuminated Standard	SPDT	125 V	200000 Cycles	Button Square	10000 Cycles	Amber LED	2 VDC
