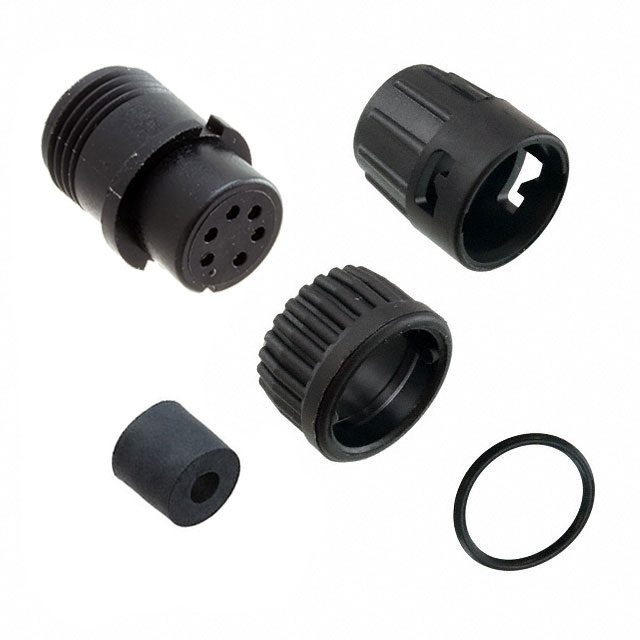

6282-6SG-321
ActiveConxall/Switchcraft
CONN PLUG FMALE 6P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6282-6SG-321
ActiveConxall/Switchcraft
CONN PLUG FMALE 6P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 6282-6SG-321 |
|---|---|
| Applications | Automotive, Communication Systems, Instrumentation |
| Backshell Material, Plating | Polyamide (PA), Nylon |
| Cable Opening [Max] [diameter] | 5.84 mm |
| Cable Opening [Max] [diameter] | 0.23 in |
| Cable Opening [Min] [diameter] | 5.33 mm |
| Cable Opening [Min] [diameter] | 0.21 in |
| Color | Black |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Brass |
| Current Rating (Amps) | Varies by Wire Gauge |
| Fastening Type | Bayonet Lock |
| Features | Backshell |
| Ingress Protection | Weathertight |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 6 |
| Operating Temperature [Max] | 115 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shielding | Unshielded |
| Voltage Rating | 600 V |
6282-6SG Series
| Part | Number of Positions | Shielding | Contact Finish - Mating | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Orientation | Primary Material | Fastening Type | Cable Opening [custom] | Cable Opening [custom] | Color | Contact Material | Applications | Backshell Material, Plating | Ingress Protection | Features | Current Rating (Amps) | Connector Type | Mounting Type | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [diameter] | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft | 6 | Unshielded | Gold | 600 V | -40 °C | 115 °C | Keyed | Plastic | Bayonet Lock | 0.13 in 0.15 in | 3.3 mm 3.81 mm | Black | Brass | Automotive Communication Systems Instrumentation | Nylon Polyamide (PA) | Weathertight | Backshell | Varies by Wire Gauge | Female Sockets Plug | Free Hanging (In-Line) | ||||||||||||
Conxall/Switchcraft | 6 | Unshielded | Gold | 600 V | -40 °C | 115 °C | Keyed | Plastic | Bayonet Lock | Black | Brass | Automotive Communication Systems Instrumentation | Nylon Polyamide (PA) | Weathertight | Backshell | Varies by Wire Gauge | Female Sockets Plug | Free Hanging (In-Line) | 6.35 mm | 0.25 in | 0.22 in | 5.59 mm | ||||||||||
Conxall/Switchcraft | 6 | Unshielded | Gold | 600 V | -40 °C | 115 °C | Keyed | Plastic | Bayonet Lock | Black | Brass | Automotive Communication Systems Instrumentation | Nylon Polyamide (PA) | Weathertight | Backshell | Varies by Wire Gauge | Female Sockets Plug | Free Hanging (In-Line) | 5.33 mm | 0.21 in | 0.19 in | 4.83 mm | ||||||||||
Conxall/Switchcraft | 6 | Unshielded | Gold | 600 V | -40 °C | 115 °C | Keyed | Plastic | Bayonet Lock | Black | Brass | Automotive Communication Systems Instrumentation | Nylon Polyamide (PA) | Weathertight | Backshell | Varies by Wire Gauge | Female Sockets Plug | Free Hanging (In-Line) | 0.16 in | 0.18 in | 4.06 mm | 4.57 mm | ||||||||||
Conxall/Switchcraft | 6 | Unshielded | Gold | 600 V | -40 °C | 115 °C | Keyed | Plastic | Bayonet Lock | Black | Brass | Automotive Communication Systems Instrumentation | Nylon Polyamide (PA) | Weathertight | Backshell | Varies by Wire Gauge | Female Sockets Plug | Free Hanging (In-Line) | 0.23 in | 0.21 in | 5.33 mm | 5.84 mm | ||||||||||
Conxall/Switchcraft | 6 | Unshielded | Gold | 600 V | -40 °C | 115 °C | Keyed | Plastic | Bayonet Lock | 0.15 in 0.17 in | 3.81 mm 4.32 mm | Black | Brass | Automotive Communication Systems Instrumentation | Nylon Polyamide (PA) | Weathertight | Backshell | Varies by Wire Gauge | Female Sockets Plug | Free Hanging (In-Line) | ||||||||||||
Conxall/Switchcraft | 6 | Unshielded | Gold | 600 V | -40 °C | 115 °C | Keyed | Plastic | Bayonet Lock | Black | Brass | Automotive Communication Systems Instrumentation | Nylon Polyamide (PA) | Weathertight | Backshell | Varies by Wire Gauge | Female Sockets Plug | Free Hanging (In-Line) | ||||||||||||||
Conxall/Switchcraft | 6 | Unshielded | Gold | 600 V | -40 °C | 115 °C | Keyed | Plastic | Bayonet Lock | Black | Brass | Automotive Communication Systems Instrumentation | Nylon Polyamide (PA) | Weathertight | Backshell | Varies by Wire Gauge | Female Sockets Plug | Free Hanging (In-Line) | 2.29 mm | 0.09 in 0.14 in | 3.56 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 11.96 | |
Description
General part information
6282-6SG Series
6 Position Circular Connector Plug, Female Sockets Solder Cup
