GSM120B20-R7B

Active

MEAN WELL USA Inc.

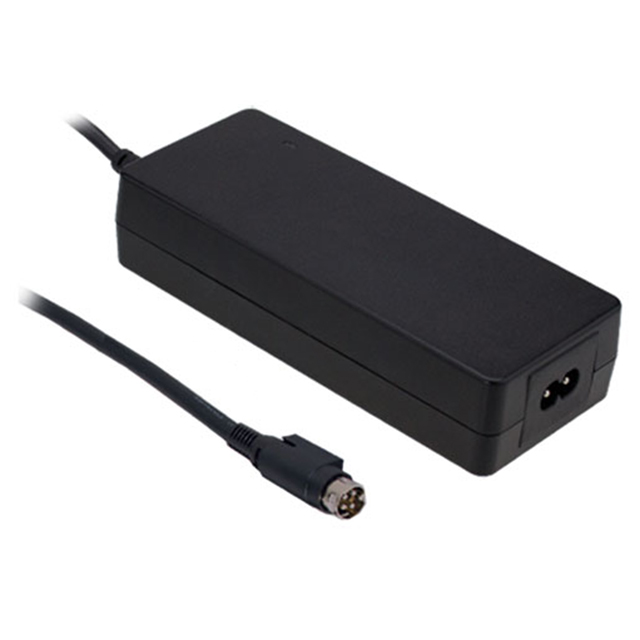

AC/DC DESKTOP ADAPTER 20V 120W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC DESKTOP ADAPTER 20V 120W

Technical Specifications

Parameters and characteristics for this part

Specification	GSM120B20-R7B

Applications	Medical
Approval Agency	CB, CE, cURus, TUV
Cord Length	1.2 m
Cord Length	47.2 in
Current - Output (Max) [Max]	6 A
Efficiency	Level VI
Form	Desktop (Class II)
Input Connector	IEC 320-C8
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 ░C
Output Connector	4 Pin
Output Connector	Power DIN
Power (Watts)	120 W
Region Utilized	International
Size / Dimension [x]	6.57 "
Size / Dimension [x]	167 mm
Size / Dimension [y]	67 mm
Size / Dimension [y]	2.64 "
Size / Dimension [z]	1.38 in
Size / Dimension [z]	35 mm
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	80 VAC
Voltage - Output	20 V

Part	Voltage - Input [Max]	Voltage - Input [Min]	Input Type	Form	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	No Load Power Consumption [Max]	Output Connector	Output Connector	Input Connector	Power (Watts)	Cord Length	Cord Length	Region Utilized	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Efficiency	Applications	Voltage - Output	Current - Output (Max) [Max]
MEAN WELL USA Inc. GSM120B20-R7B	264 VAC	80 VAC	Cord	Desktop (Class II)	6.57 "	1.38 in	35 mm	67 mm	2.64 "	167 mm	150 mW	4 Pin	Power DIN	IEC 320-C8	120 W	1.2 m	47.2 in	International	70 °C	-30 ░C	CB CE cURus TUV	Level VI	Medical	20 V	6 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	20	$ 45.00

General part information

20V 120 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
