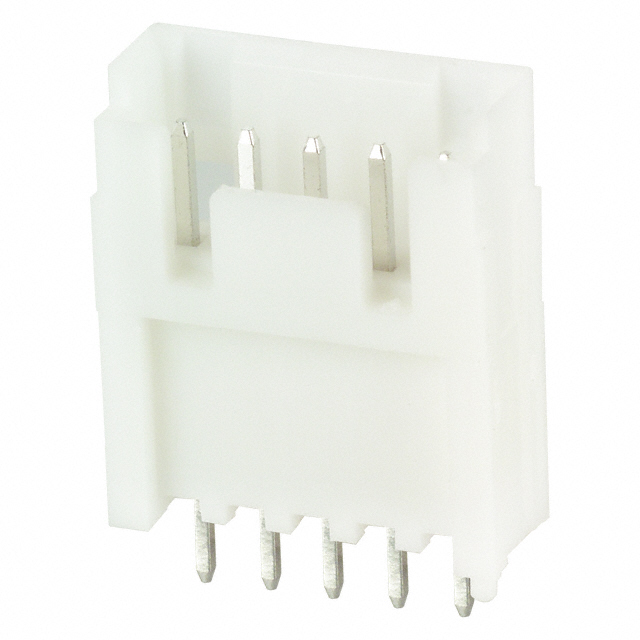

DF1BD-5P-2.5DSA(05)

LTB

Hirose Electric USA, Inc.

[SIGNALBEE ] 2.5MM PITCH CONNECTORS FOR DISCRETE WIRE (UL/CSA CERTIFIED)

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDF1B Series Datasheet

DF1BD-5P-2.5DSA(05)

LTB

Hirose Electric USA, Inc.

[SIGNALBEE ] 2.5MM PITCH CONNECTORS FOR DISCRETE WIRE (UL/CSA CERTIFIED)

Deep-Dive with AI

DocumentsDF1B Series Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF1BD-5P-2.5DSA(05)

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	1 µm
Contact Finish Thickness - Mating	39.4 µin
Contact Length - Mating	0.177 in
Contact Length - Mating	4.5 mm
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Board Guide, Keying Slot
Insulation Color	White
Insulation Height	0.689 in
Insulation Height	17.5 mm
Insulation Material	Polyamide (PA), Nylon
Mated Stacking Heights	14 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-35 °C
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

DF1BD Series

Part	Shrouding	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Termination	Contact Finish - Post	Contact Type	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Material Flammability Rating	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Connector Type	Mated Stacking Heights	Contact Length - Post	Contact Length - Post	Features	Contact Material	Insulation Material	Pitch - Mating	Pitch - Mating	Number of Positions	Style	Number of Rows	Contact Shape
Hirose Electric USA, Inc. DF1BD-4P-2.5DSA(05)	Shrouded - 4 Wall	250 VDC	1 µm	39.4 µin	Push-Pull	Solder	Tin	Male Pin	White	-35 °C	85 °C	Through Hole	UL94 V-0	All	0.177 in	4.5 mm	0.689 in	17.5 mm	Header	14 mm	0.118 in	3 mm	Board Guide Keying Slot	Brass	Nylon Polyamide (PA)	2.5 mm	0.098 in	4	Board to Cable/Wire	1	Square
Hirose Electric USA, Inc. DF1BD-5P-2.5DSA(05)	Shrouded - 4 Wall	250 VDC	1 µm	39.4 µin	Push-Pull	Solder	Tin	Male Pin	White	-35 °C	85 °C	Through Hole	UL94 V-0	All	0.177 in	4.5 mm	0.689 in	17.5 mm	Header	14 mm	0.118 in	3 mm	Board Guide Keying Slot	Brass	Nylon Polyamide (PA)	2.5 mm	0.098 in		Board to Cable/Wire	1	Square
Hirose Electric USA, Inc. DF1BD-2P-2.5DSA(05)	Shrouded - 4 Wall	250 VDC	1 µm	39.4 µin	Push-Pull	Solder	Tin	Male Pin	White	-35 °C	85 °C	Through Hole	UL94 V-0	All	0.177 in	4.5 mm	0.689 in	17.5 mm	Header	14 mm	0.118 in	3 mm	Board Guide Keying Slot	Brass	Nylon Polyamide (PA)	2.5 mm	0.098 in	2	Board to Cable/Wire	1	Square
Hirose Electric USA, Inc. DF1BD-3P-2.5DSA(05)	Shrouded - 4 Wall	250 VDC	1 µm	39.4 µin	Push-Pull	Solder	Tin	Male Pin	White	-35 °C	85 °C	Through Hole	UL94 V-0	All	0.177 in	4.5 mm	0.689 in	17.5 mm	Header	14 mm	0.118 in	3 mm	Board Guide Keying Slot	Brass	Nylon Polyamide (PA)	2.5 mm	0.098 in		Board to Cable/Wire	1	Square
Hirose Electric USA, Inc. DF1BD-6P-2.5DSA(05)	Shrouded - 4 Wall	250 VDC	1 µm	39.4 µin	Push-Pull	Solder	Tin	Male Pin	White	-35 °C	85 °C	Through Hole	UL94 V-0	All	0.177 in	4.5 mm	0.689 in	17.5 mm	Header	14 mm	0.118 in	3 mm	Board Guide Keying Slot	Brass	Nylon Polyamide (PA)	2.5 mm	0.098 in	6	Board to Cable/Wire	1	Square

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 0.76
Newark	Each	1	$ 0.76
		2500	$ 0.66

Description

General part information

DF1BD Series

Connector Header Through Hole 5 position 0.098" (2.50mm)

Documents

Technical documentation and resources

DF1B Series Datasheet

Datasheet
