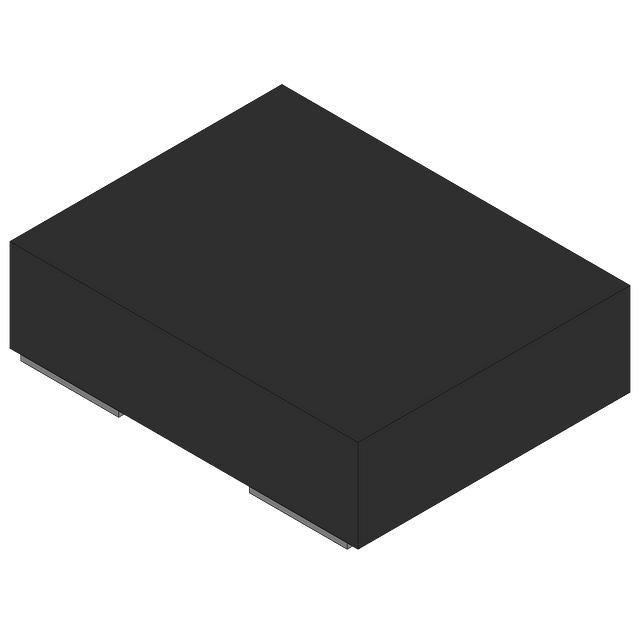

EC4401C-TL

Active

Sanyo

N-CHANNEL MOSFET

Search across all available documentation for this part.

Active

Sanyo

N-CHANNEL MOSFET

Technical Specifications

Parameters and characteristics for this part

Specification	EC4401C-TL

Current - Continuous Drain (Id) @ 25°C	150 mA
Drain to Source Voltage (Vdss)	30 V
Drive Voltage (Max Rds On, Min Rds On) [Max]	1.5 V
Drive Voltage (Max Rds On, Min Rds On) [Min]	4 V
FET Type	N-Channel
Mounting Type	Surface Mount
Operating Temperature	150 °C
Package / Case	4-UFDFN
Power Dissipation (Max) [Max]	150 mW
Rds On (Max) @ Id, Vgs	3.7 Ohm
Technology	MOSFET (Metal Oxide)
Vgs (Max)	10 V

Part	FET Type	Technology	Vgs (Max)	Rds On (Max) @ Id, Vgs	Power Dissipation (Max) [Max]	Drive Voltage (Max Rds On, Min Rds On) [Min]	Drive Voltage (Max Rds On, Min Rds On) [Max]	Mounting Type	Operating Temperature	Drain to Source Voltage (Vdss)	Package / Case	Current - Continuous Drain (Id) @ 25°C
Sanyo EC4401C-TL	N-Channel	MOSFET (Metal Oxide)	10 V	3.7 Ohm	150 mW	4 V	1.5 V	Surface Mount	150 °C	30 V	4-UFDFN	150 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1820	$ 0.16

General part information

N-Channel 30 V 150mA (Ta) 150mW (Ta) Surface Mount 4-ECSP1008

Technical documentation and resources

No documents available
