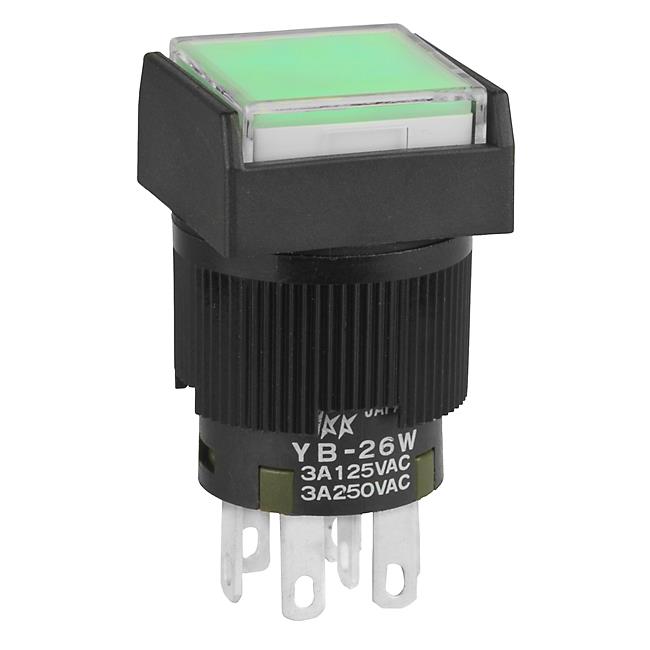

YB26WSKW01-5F-JF

Active

NKK Switches

SWITCH PUSHBUTTON DPDT 3A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

YB26WSKW01-5F-JF

Active

NKK Switches

SWITCH PUSHBUTTON DPDT 3A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	YB26WSKW01-5F-JF

Actuator Marking	No Marking
Actuator Type	Button, Square
Circuit	DPDT
Color - Actuator/Cap	Clear
Current Rating (Amps)	3 A
Electrical Life	100000 Cycles
Features	Voltage Reduction Lighting
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	2.2 VDC
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	200000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-On
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Illuminated, Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

YB26WS Series

Part	Color - Actuator/Cap	Ingress Protection	Mounting Type	Actuator Type	Panel Cutout Dimensions [diameter]	Type	Voltage Rating - DC	Illumination Voltage (Nominal)	Illumination Type, Color	Voltage Rating - AC	Actuator Marking	Termination Style	Termination Style	Termination Style	Features	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Electrical Life	Circuit	Mechanical Life
NKK Switches YB26WSKW01-1D24-JE	Clear (Yellow Filter/Diffuser)	IP65 - Dust Tight Water Resistant	Panel Mount Front	Button Square	16 mm	Illuminated Standard	30 V	24 V	Amber LED	125 V	No Marking	0.11 in	Quick Connect Solder	2.8 mm	Voltage Reduction Lighting	On-On	50 °C	-25 °C	3 A	100000 Cycles	DPDT	200000 Cycles
NKK Switches YB26WSKW01-6F-JB	Clear	IP65 - Dust Tight Water Resistant	Panel Mount Front	Button Square	16 mm	Illuminated Standard	30 V	3.3 VDC	Green LED	125 V	No Marking	0.11 in	Quick Connect Solder	2.8 mm	Voltage Reduction Lighting	On-On	50 °C	-25 °C	3 A	100000 Cycles	DPDT	200000 Cycles
NKK Switches YB26WSKW01-5C-JC	Clear (Red Filter/Diffuser)	IP65 - Dust Tight Water Resistant	Panel Mount Front	Button Square	16 mm	Illuminated Standard	30 V	1.9 VDC	LED Red	125 V	No Marking	0.11 in	Quick Connect Solder	2.8 mm	Voltage Reduction Lighting	On-On	50 °C	-25 °C	3 A	100000 Cycles	DPDT	200000 Cycles
NKK Switches YB26WSKW01-1E24-JA	Clear	IP65 - Dust Tight Water Resistant	Panel Mount Front	Button Square	16 mm	Illuminated Standard	30 V	24 V	LED Yellow	125 V	No Marking	0.11 in	Quick Connect Solder	2.8 mm	Voltage Reduction Lighting	On-On	50 °C	-25 °C	3 A	100000 Cycles	DPDT	200000 Cycles
NKK Switches YB26WSKG01-2CF12-JB	Clear	IP65 - Dust Tight Water Resistant	Panel Mount Front	Button Square	16 mm	Illuminated Standard	28 V	12 VDC	Green/Red LED	28 V	No Marking	0.11 in	Quick Connect Solder	2.8 mm	Voltage Reduction Lighting	On-On	50 °C	-25 °C	0.4 VA	100000 Cycles	DPDT	200000 Cycles
NKK Switches YB26WSKW01-1C05-JB	Clear	IP65 - Dust Tight Water Resistant	Panel Mount Front	Button Square	16 mm	Illuminated Standard	30 V	5 VDC	LED Red	125 V	No Marking	0.11 in	Quick Connect Solder	2.8 mm	Voltage Reduction Lighting	On-On	50 °C	-25 °C	3 A	100000 Cycles	DPDT	200000 Cycles
NKK Switches YB26WSKW01-1F24-JA	Clear	IP65 - Dust Tight Water Resistant	Panel Mount Front	Button Square	16 mm	Illuminated Standard	30 V	24 V	Green LED	125 V	No Marking	0.11 in	Quick Connect Solder	2.8 mm	Voltage Reduction Lighting	On-On	50 °C	-25 °C	3 A	100000 Cycles	DPDT	200000 Cycles
NKK Switches YB26WSKW01-5F-JF	Clear	IP65 - Dust Tight Water Resistant	Panel Mount Front	Button Square	16 mm	Illuminated Standard	30 V	2.2 VDC	Green LED	125 V	No Marking	0.11 in	Quick Connect Solder	2.8 mm	Voltage Reduction Lighting	On-On	50 °C	-25 °C	3 A	100000 Cycles	DPDT	200000 Cycles
NKK Switches YB26WSKW01-5F12-JF	Clear	IP65 - Dust Tight Water Resistant	Panel Mount Front	Button Square	16 mm	Illuminated Standard	30 V	12 VDC	Green LED	125 V	No Marking	0.11 in	Quick Connect Solder	2.8 mm	Voltage Reduction Lighting	On-On	50 °C	-25 °C	3 A	100000 Cycles	DPDT	200000 Cycles
NKK Switches YB26WSKG01-5D12-JD	Clear	IP65 - Dust Tight Water Resistant	Panel Mount Front	Button Square	16 mm	Illuminated Standard	28 V	12 VDC	Amber LED	28 V	No Marking	0.11 in	Quick Connect Solder	2.8 mm	Voltage Reduction Lighting	On-On	50 °C	-25 °C	0.4 VA	100000 Cycles	DPDT	200000 Cycles

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 26.20
		10	$ 22.61
		25	$ 21.31
		40	$ 20.68
		80	$ 19.77
		230	$ 18.47
		440	$ 17.71
Newark	Each	1	$ 44.43
		5	$ 39.62
		10	$ 38.27
		25	$ 36.16
		50	$ 33.66
		100	$ 29.81
		250	$ 26.73

Description

General part information

YB26WS Series

Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Front
