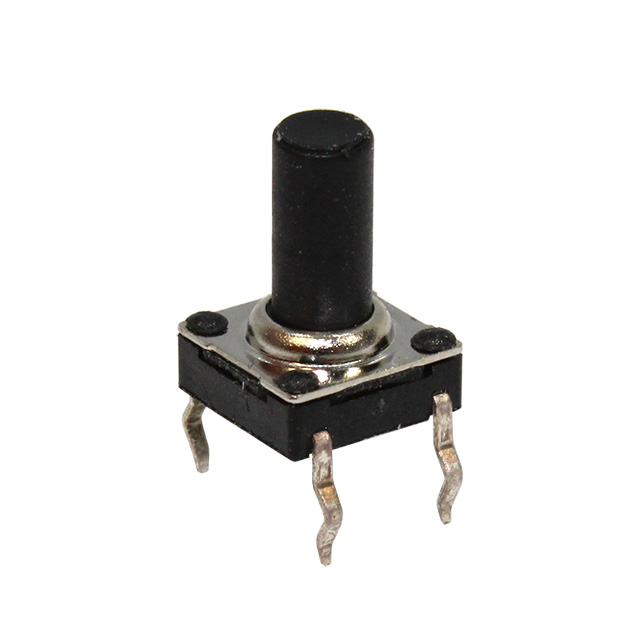

ST10.0LF520Q

Active

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 48V

Search across all available documentation for this part.

Active

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 48V

Technical Specifications

Parameters and characteristics for this part

Specification	ST10.0LF520Q

Actuator Height off PCB, Vertical [z]	10 mm
Actuator Material	Polybutylene Terephthalate (PBT)
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 48 VDC
Illumination	Non-Illuminated
Mounting Type	Through Hole
Operating Force	520 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	7.2 mm
Outline [y]	7.2 mm
Switch Function	Off-Mom
Switch Travel	0.45 mm
Termination Style	PC Pin

Part	Switch Travel	Switch Function	Illumination	Outline [x]	Outline [y]	Actuator Height off PCB, Vertical [z]	Contact Rating @ Voltage	Mounting Type	Circuit	Termination Style	Actuator Orientation	Actuator Material	Operating Temperature [Max]	Operating Temperature [Min]	Operating Force	Actuator Type
CIT Relay and Switch ST10.0LF520Q	0.45 mm	Off-Mom	Non-Illuminated	7.2 mm	7.2 mm	10 mm	0.05 A 48 VDC	Through Hole	SPST-NO	PC Pin	Top Actuated	Polybutylene Terephthalate (PBT)	85 °C	-40 °C	520 gf	Standard
CIT Relay and Switch ST10.0LF100Q	0.45 mm	Off-Mom	Non-Illuminated	7.2 mm	7.2 mm	10 mm	0.05 A 48 VDC	Through Hole	SPST-NO	PC Pin	Top Actuated	Polybutylene Terephthalate (PBT)	85 °C	-40 °C	100 gf	Standard
CIT Relay and Switch ST10.0LF260Q	0.45 mm	Off-Mom	Non-Illuminated	7.2 mm	7.2 mm	10 mm	0.05 A 48 VDC	Through Hole	SPST-NO	PC Pin	Top Actuated	Polybutylene Terephthalate (PBT)	85 °C	-40 °C	260 gf	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
