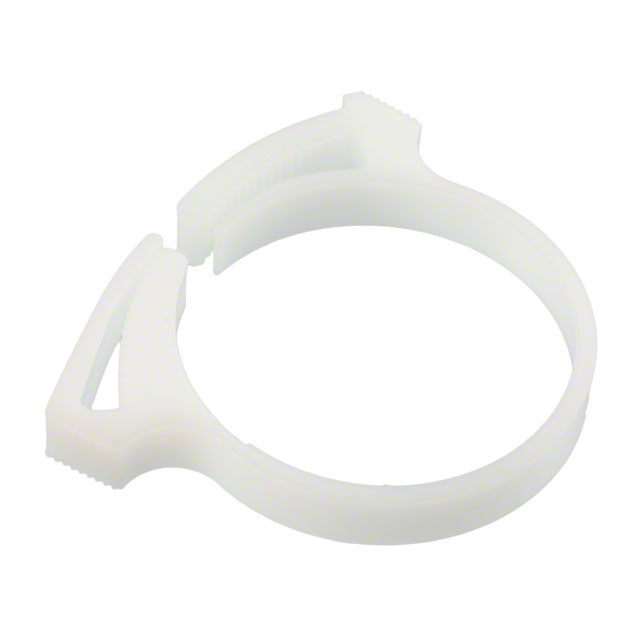

SNP3410H4

Active

HELLERMANNTYTON

CBL CLIP HOSE WHITE

Search across all available documentation for this part.

Active

HELLERMANNTYTON

CBL CLIP HOSE WHITE

Technical Specifications

Parameters and characteristics for this part

Specification	SNP3410H4

Color	White
Length [Max]	49.94 mm
Length [Max]	1.966 in
Length [Min]	1.186 in
Length [Min]	30.12 mm
Material	Polyacetal (POM)
Material Flammability Rating	UL94 HB
Material Thickness	0.068 in
Material Thickness	1.73 mm
Opening Size	39.7
Opening Size [Max] [custom]	1.566 in
Opening Size [Min] [custom]	33.98 mm
Opening Size [Min] [custom]	1.338 in
Type	Clamp, Hose
Type Attributes	Push-Fit
Width	0.292 in
Width	7.42 mm

Part	Opening Size [Min] [custom]	Opening Size [Min] [custom]	Opening Size	Opening Size [Max] [custom]	Material	Width	Width	Type	Material Thickness	Material Thickness	Type Attributes	Material Flammability Rating	Length [Min]	Length [Max]	Length [Max]	Length [Min]	Color
HELLERMANNTYTON SNP3410K2	33.98 mm	1.338 in	39.7	1.566 in	Polyacetal (POM)	0.292 in	7.42 mm	Clamp Hose	0.068 in	1.73 mm	Push-Fit	UL94 HB	1.186 in	49.94 mm	1.966 in	30.12 mm	White
HELLERMANNTYTON SNP3410H4	33.98 mm	1.338 in	39.7	1.566 in	Polyacetal (POM)	0.292 in	7.42 mm	Clamp Hose	0.068 in	1.73 mm	Push-Fit	UL94 HB	1.186 in	49.94 mm	1.966 in	30.12 mm	White
