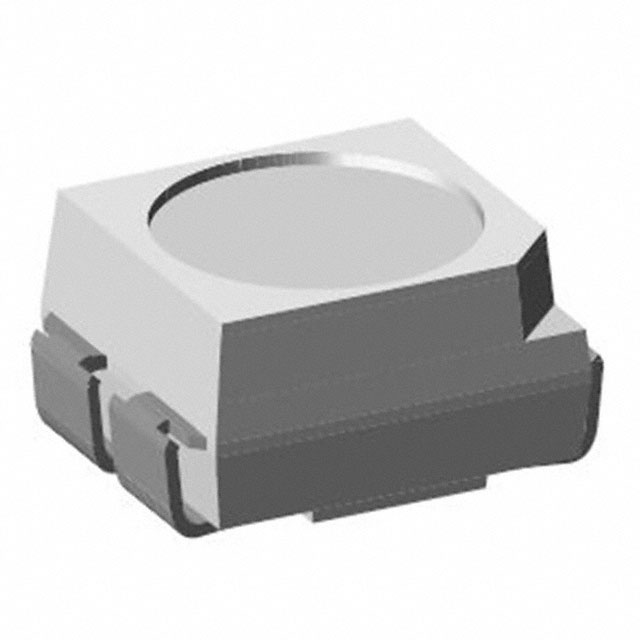

VLMW322ABBB5K8L-08
ObsoleteVishay General Semiconductor - Diodes Division
LED WHITE 4PLCC SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VLMW322ABBB5K8L-08
ObsoleteVishay General Semiconductor - Diodes Division
LED WHITE 4PLCC SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VLMW322ABBB5K8L-08 |
|---|---|
| Color | White |
| Configuration | Standard |
| Current - Test | 30 mA |
| Height (Max) [Max] [z] | 2.1 mm |
| Lens Size [diameter] | 2.4 mm |
| Millicandela Rating | 2200 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 4-PLCC |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 2.8 mm |
| Supplier Device Package | 4-PLCC |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
VLMW32 Series
White LED Indication - Discrete 3.4V 4-PLCC
