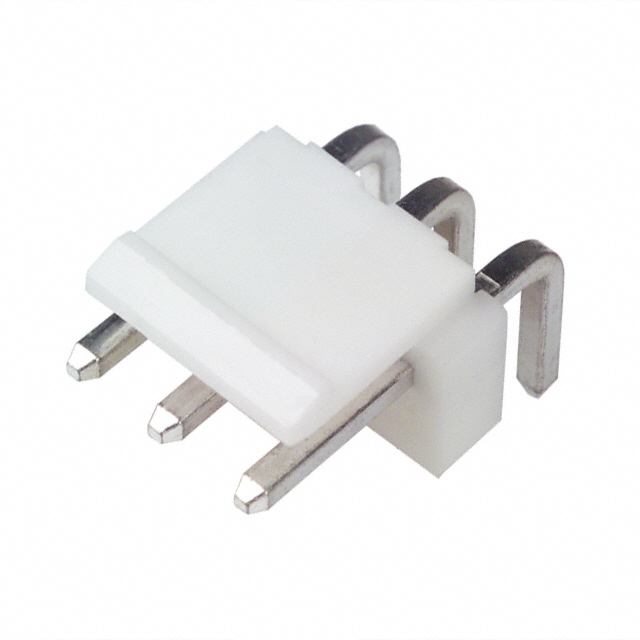

B3PS-VH
ActiveJST Sales America Inc.
CONN HEADER R/A 3POS 3.96MM
Deep-Dive with AI
Search across all available documentation for this part.
B3PS-VH
ActiveJST Sales America Inc.
CONN HEADER R/A 3POS 3.96MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | B3PS-VH |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Mating | 7.7 mm |
| Contact Length - Mating | 0.303 in |
| Contact Length - Post | 3.6 mm |
| Contact Length - Post | 0.142 in |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 10 A |
| Fastening Type | Locking Ramp |
| Insulation Color | Natural |
| Insulation Height | 0.335 " |
| Insulation Height | 8.51 mm |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch - Mating | 0.156 in |
| Pitch - Mating | 3.96 mm |
| Shrouding | Shrouded - 1 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 250 VDC |
