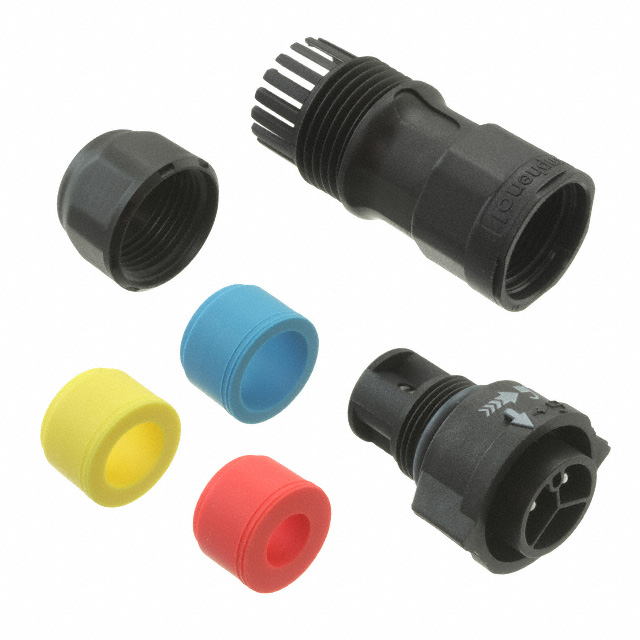

CC-02BFMB-QL8APP

Active

Amphenol LTW

CONN PLUG MALE 2POS GOLD SCREW

Search across all available documentation for this part.

Active

Amphenol LTW

CONN PLUG MALE 2POS GOLD SCREW

Technical Specifications

Parameters and characteristics for this part

Specification	CC-02BFMB-QL8APP

Cable Opening [custom]	0.472 in, 0.236 in
Cable Opening [custom]	12 mm
Cable Opening [custom]	6 mm
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	20 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Size - Insert	C
Shielding	Unshielded
Termination	Screw
Voltage Rating	300 VAC

Part	Material Flammability Rating	Number of Positions	Insert Material	Shell Size - Insert	Orientation	Mounting Type	Shielding	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [custom]	Ingress Protection	Fastening Type	Features	Termination	Color	Current Rating (Amps)	Contact Material	Connector Type	Voltage Rating	Contact Finish - Mating	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol LTW CC-02BFMB-QL8APP	UL94 V-0	2	Polyamide (PA) Nylon Glass Filled	C	Keyed	Free Hanging (In-Line)	Unshielded	0.236 in 0.472 in	12 mm	6 mm	IP68 - Dust Tight Waterproof	Push-Pull	Backshell	Screw	Black	20 A	Copper Alloy	Male Pins Plug	300 VAC	Gold	Plastic	-40 °C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (Power) Position Circular Connector Plug, Male Pins Screw
