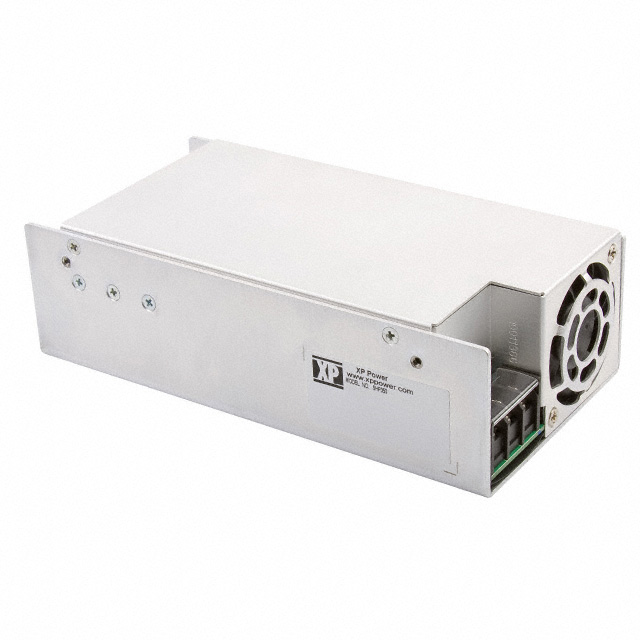

SHP350PS48

Active

XP POWER

AC/DC CONVERTER 48V 350W

Search across all available documentation for this part.

Active

XP POWER

AC/DC CONVERTER 48V 350W

Technical Specifications

Parameters and characteristics for this part

Specification	SHP350PS48

Applications	ITE (Commercial)
Approval Agency	CB
Current - Output 1	7.3 A
Efficiency	85 %
Features	Universal Input, Remote On/Off, Adjustable Output, Load Sharing, Standby Output
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	350 W
Size / Dimension [x]	7 "
Size / Dimension [x]	177.8 mm
Size / Dimension [y]	3.6 "
Size / Dimension [y]	91.4 mm
Size / Dimension [z]	2.1 "
Size / Dimension [z]	53.3 mm
Standard Number	62368-1
Type	Enclosed
Voltage - Isolation	3000 V
Voltage - Output 1	48 V

Part	Voltage - Isolation	Power (Watts)	Efficiency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Output 1	Standard Number	Current - Output 1	Mounting Type	Type	Approval Agency	Applications	Number of Outputs	Features
XP POWER SHP350PS12	3000 V	350 W	85 %	2.1 "	3.6 "	53.3 mm	7 "	91.4 mm	177.8 mm	12 V	62368-1	26.5 A	Chassis Mount	Enclosed	CB	ITE (Commercial)	1	Adjustable Output Load Sharing Remote On/Off Standby Output Universal Input
XP POWER SHP350PS48	3000 V	350 W	85 %	2.1 "	3.6 "	53.3 mm	7 "	91.4 mm	177.8 mm	48 V	62368-1	7.3 A	Chassis Mount	Enclosed	CB	ITE (Commercial)	1	Adjustable Output Load Sharing Remote On/Off Standby Output Universal Input
XP POWER SHP350PS28	3000 V	350 W	85 %	2.1 "	3.6 "	53.3 mm	7 "	91.4 mm	177.8 mm	28 V	62368-1	12.5 A	Chassis Mount	Enclosed	CB	ITE (Commercial)	1	Adjustable Output Load Sharing Remote On/Off Standby Output Universal Input
