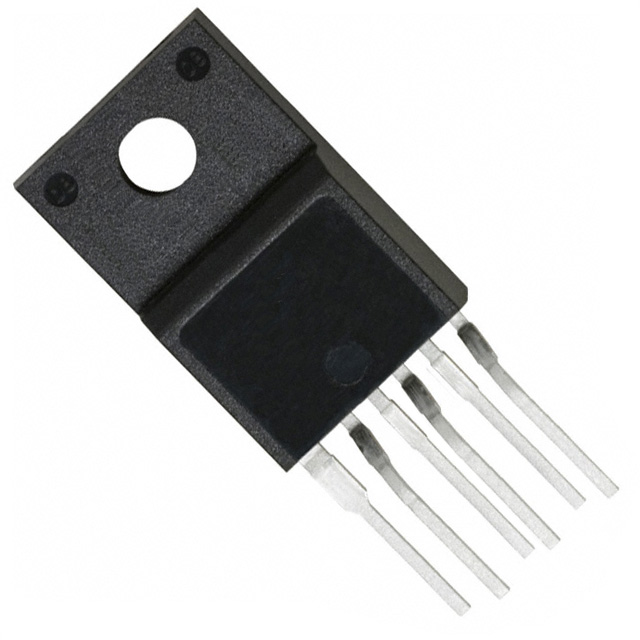

STR2W152D

Obsolete

Sanken Electric USA Inc.

IC OFFLINE SW FLBACK TO220F-6L

Search across all available documentation for this part.

Obsolete

Sanken Electric USA Inc.

IC OFFLINE SW FLBACK TO220F-6L

Technical Specifications

Parameters and characteristics for this part

Specification	STR2W152D

Duty Cycle	74 %
Fault Protection	Over Temperature, Over Load, Current Limiting, Over Voltage
Frequency - Switching [Max]	74 kHz
Frequency - Switching [Min]	60 kHz
Internal Switch(s)	True
Mounting Type	Through Hole
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-20 °C
Output Isolation	Isolated
Package / Case	TO-220-6 Full Pack, Formed Leads
Power (Watts)	60 W
Supplier Device Package	TO-220F-6L
Topology	Flyback
Voltage - Breakdown	650 V
Voltage - Start Up	15.3 V
Voltage - Supply (Vcc/Vdd) [Max]	32 V
Voltage - Supply (Vcc/Vdd) [Min]	8.1 V

Part	Internal Switch(s)	Supplier Device Package	Voltage - Breakdown	Fault Protection	Package / Case	Power (Watts)	Duty Cycle	Output Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Start Up	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Mounting Type	Frequency - Switching [Min]	Frequency - Switching [Max]	Topology
Sanken Electric USA Inc. STR2W152D		TO-220F-6L	650 V	Current Limiting Over Load Over Temperature Over Voltage	TO-220-6 Full Pack Formed Leads	60 W	74 %	Isolated	-20 °C	115 °C	15.3 V	8.1 V	32 V	Through Hole	60 kHz	74 kHz	Flyback

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Converter Offline Flyback Topology 60kHz ~ 74kHz TO-220F-6L
