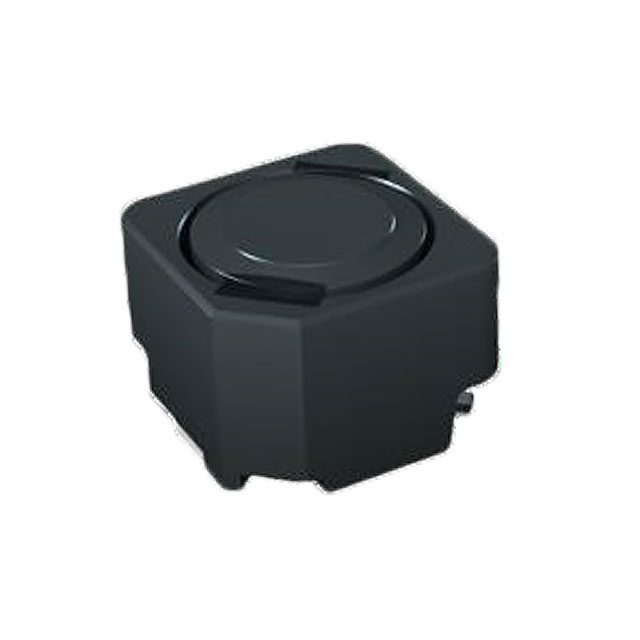

MBH12282C-680MA=P3

Obsolete

Murata Power Solutions Inc.

FIXED IND 68UH 2.2A 99.6MOHM SMD

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

FIXED IND 68UH 2.2A 99.6MOHM SMD

Technical Specifications

Parameters and characteristics for this part

Part	Current Rating (Amps)	Ratings	Inductance	DC Resistance (DCR) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Inductance Frequency - Test	Material - Core	Shielding	Current - Saturation (Isat)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Type	Tolerance	Package / Case	DC Resistance (DCR)
Murata Power Solutions Inc. MBH12282C-4R7NA=P3
Murata Power Solutions Inc. MBH12282C-680MA=P3	2.2 A	AEC-Q200	68 µH	99.6 mOhm	0.335 in	8.5 mm	Surface Mount	100 kHz	Ferrite	Shielded	3 A	0.492 in	0.492 "	12.5 mm	12.5 mm	Drum Core Wirewound	20 %	Nonstandard
Murata Power Solutions Inc. MBH12282C-470MA=P3	2.6 A	AEC-Q200	47 µH	79.2 mOhm	0.335 in	8.5 mm	Surface Mount	100 kHz	Ferrite	Shielded	3.6 A	0.492 in	0.492 "	12.5 mm	12.5 mm	Drum Core Wirewound	20 %	Nonstandard
Murata Power Solutions Inc. MBH12282C-6R8NA=P3	5.7 A	AEC-Q200	6.8 µH		0.335 in	8.5 mm	Surface Mount	100 kHz	Ferrite	Shielded	10 A	0.492 in	0.492 "	12.5 mm	12.5 mm	Drum Core Wirewound	30 %	Nonstandard	18 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

68 µH Shielded Drum Core, Wirewound Inductor 2.2 A 99.6mOhm Max Nonstandard
