VLT69273B2NJ-518A
ActiveTE Connectivity Raychem Cable Protection

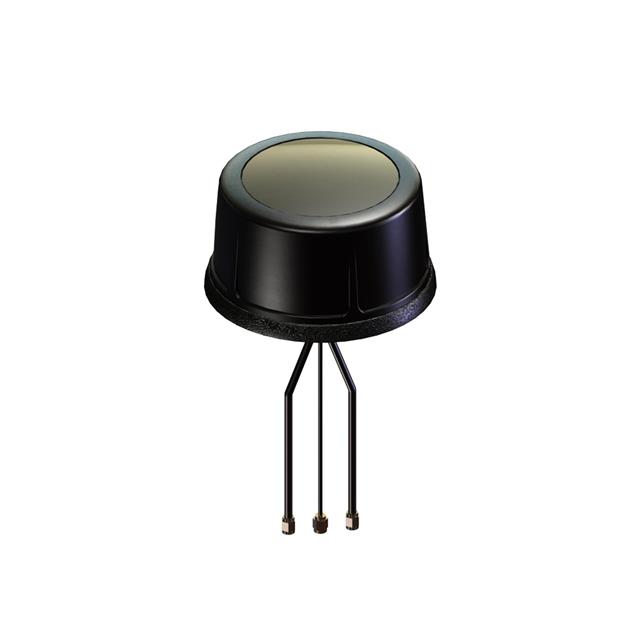

VEHL PUCK,BLACK,3 PORTS 17FT,LTE,GNSS
Deep-Dive with AI
Search across all available documentation for this part.
VLT69273B2NJ-518A
ActiveTE Connectivity Raychem Cable Protection
VEHL PUCK,BLACK,3 PORTS 17FT,LTE,GNSS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VLT69273B2NJ-518A |
|---|---|
| Antenna Type | Dome |
| Applications | Beidou, GPS, LTE, GLONASS |
| Features | 5.18 m |
| Frequency (Center/Band) | 1.561 GHz, 1.602 GHz, 859 MHz, 2.4 GHz, 2.6 GHz, 1.575 GHz, 1.92 GHz, 920 MHz, 1.795 GHz, 2.04 GHz, 752 MHz |
| Frequency Group | Wide Band |
| Frequency Range [Max] | 960 MHz, 1.99 GHz, 2.17 GHz, 1.576 GHz, 806 MHz, 2.7 GHz, 1.88 GHz, 1.607 GHz, 894 MHz, 1.563 GHz, 2.5 GHz |
| Frequency Range [Min] | 1.559 GHz, 1.597 GHz, 1.91 GHz, 880 MHz, 1.71 GHz, 1.85 GHz, 1.574 GHz, 2.3 GHz, 2.5 GHz, 698 MHz, 824 MHz |
| Gain | 3.3 dBi, 28 dBi, 2.3 dBi, 5 dBi, 4.6 dBi, 2.7 dBi, 5.7 dBi, 4.8 dBi, 4.9 dBi |
| Height (Max) [Max] | 2.953 in |
| Height (Max) [Max] | 75 mm |
| Ingress Protection | IP67 |
| Number of Bands | 11 |
| Power - Max [Max] | 50 W |
| RF Family/Standard | Cellular, Navigation |
| Termination | SMA Male (2) |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 150.47 | |
| 10 | $ 144.11 | |||
| 25 | $ 140.93 | |||
Description
General part information
VLT69273 Series
Dome/Puck Antenna, Multi Band, Cellular / GNSS / Vehicular, External Mount, Stud/Screw/Lug Mount, SMA, Omnidirectional, Multiple Ports
