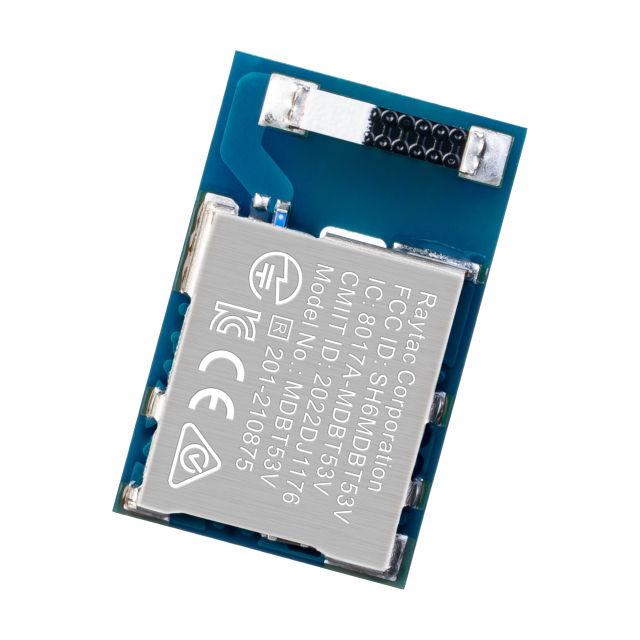

MDBT53V-1M
ActiveRaytac
RF TXRX MOD 802.15.4 BT CHIP SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MDBT53V-1M
ActiveRaytac
RF TXRX MOD 802.15.4 BT CHIP SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MDBT53V-1M |
|---|---|
| Antenna Type | Chip |
| Current - Receiving [Max] | 7.9 mA |
| Current - Receiving [Min] | 2.7 mA |
| Current - Transmitting [Max] | 11.3 mA |
| Current - Transmitting [Min] | 1.5 mA |
| Data Rate | 2 Mbps |
| Frequency | 2.4 GHz |
| Memory Size [custom] | 512 kB |
| Memory Size [custom] | 1 MB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 39-SMD Module |
| Power - Output | 3 dBm |
| Protocol | ANT+, Zigbee®, Bluetooth v5.4, Thread |
| RF Family/Standard | Bluetooth, 802.15.4 |
| Sensitivity | -104 dBm |
| Serial Interfaces | UART, GPIO, SPI, I2S, ADC, I2C, PWM |
| Utilized IC / Part | nRF5340 |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 1.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.90 | |
| 20 | $ 8.70 | |||
| 50 | $ 8.50 | |||
Description
General part information
MDBT53V Series
802.15.4, Bluetooth ANT+, Bluetooth v5.4, Thread, Zigbee® Transceiver Module 2.4GHz Chip Surface Mount
