PJQ2815_R1_00001

Active

Panjit International Inc.

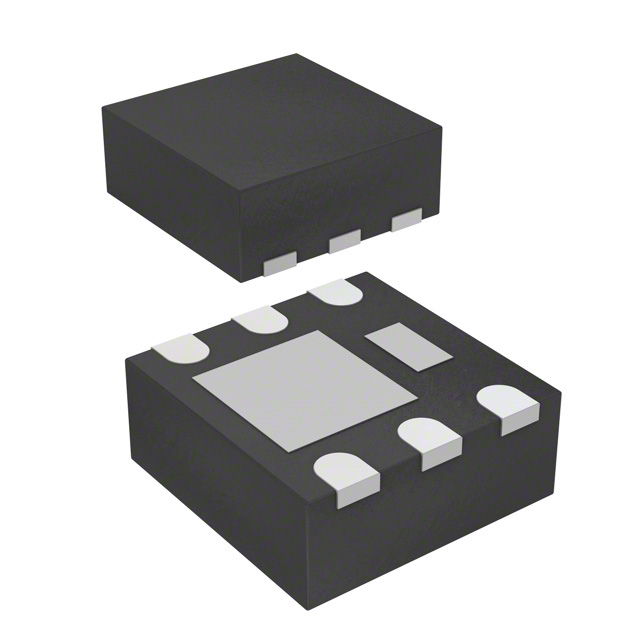

DFN2020-6L, MOSFET

Search across all available documentation for this part.

Active

Panjit International Inc.

DFN2020-6L, MOSFET

Technical Specifications

Parameters and characteristics for this part

Specification	PJQ2815_R1_00001

Configuration	2 P-Channel
Current - Continuous Drain (Id) @ 25°C	4.2 A
Drain to Source Voltage (Vdss)	20 V
Gate Charge (Qg) (Max) @ Vgs [Max]	24 nC
Input Capacitance (Ciss) (Max) @ Vds	907 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	6-VDFN Exposed Pad
Power - Max [Max]	1.5 W
Rds On (Max) @ Id, Vgs	52 mOhm
Supplier Device Package	DFN2020-6L
Technology	MOSFET (Metal Oxide)
Vgs(th) (Max) @ Id	900 mV

Part	Configuration	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Vgs(th) (Max) @ Id	Current - Continuous Drain (Id) @ 25°C	Supplier Device Package	Drain to Source Voltage (Vdss)	Rds On (Max) @ Id, Vgs	Input Capacitance (Ciss) (Max) @ Vds	Package / Case	Power - Max [Max]	Technology	Gate Charge (Qg) (Max) @ Vgs [Max]
Panjit International Inc. PJQ2815_R1_00001	2 P-Channel	Surface Mount	-55 °C	150 °C	900 mV	4.2 A	DFN2020-6L	20 V	52 mOhm	907 pF	6-VDFN Exposed Pad	1.5 W	MOSFET (Metal Oxide)	24 nC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Mosfet Array 20V 4.2A (Ta) 1.5W (Ta) Surface Mount DFN2020-6L
