Q2-Z-2-01-MS50FT

Active

Qualtek

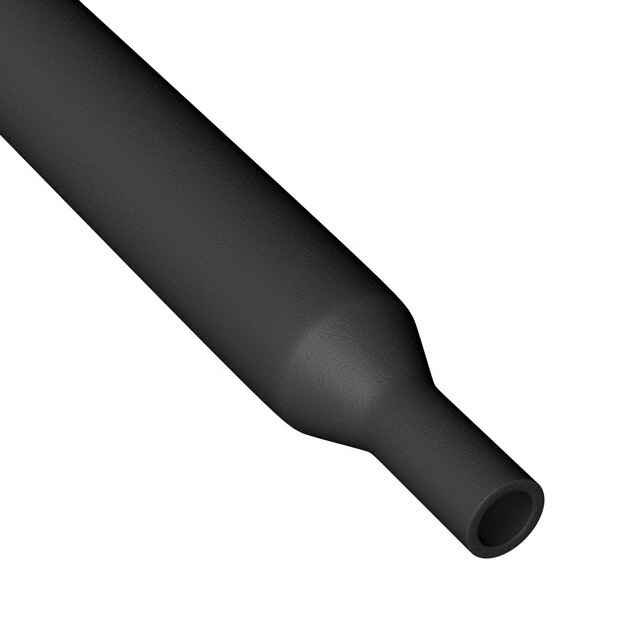

HEATSHRINK POLY Q2Z 2"X50FT BLK

Search across all available documentation for this part.

Active

Qualtek

HEATSHRINK POLY Q2Z 2"X50FT BLK

Technical Specifications

Parameters and characteristics for this part

Specification	Q2-Z-2-01-MS50FT

Color	Black
Features	Flame Retardant
Inner Diameter - Recovered [diameter]	25.4 mm
Inner Diameter - Recovered [diameter]	1 in
Inner Diameter - Supplied [diameter]	50.8 mm
Inner Diameter - Supplied [diameter]	2 in
Length	15.2 m
Length	50 ft
Material	Polyolefin (PO)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	1.02 mm
Recovered Wall Thickness	0.04 in
Shelf Life	144 Months
Shrink Temperature	70 °C
Shrinkage Ratio	2 to 1
Storage/Refrigeration Temperature [Max]	40 °C
Storage/Refrigeration Temperature [Min]	-10 °C, -50 °F
Type	Tubing, Flexible

Part	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Recovered Wall Thickness	Recovered Wall Thickness	Shrink Temperature	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Color	Features	Type	Material	Length [x]	Length [x]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Shelf Life	Shrinkage Ratio	Length	Length
Qualtek Q2-Z-2-01-QB48IN-5	25.4 mm	1 in	-55 °C	125 °C	1.02 mm	0.04 in	70 °C	-50 °F -10 °C	40 °C	Black	Flame Retardant	Tubing Flexible	Polyolefin (PO)	1.22 m	4 ft	50.8 mm	2 in	144 Months	2 to 1
Qualtek Q2-Z-2-01-MS50FT	25.4 mm	1 in	-55 °C	125 °C	1.02 mm	0.04 in	70 °C	-50 °F -10 °C	40 °C	Black	Flame Retardant	Tubing Flexible	Polyolefin (PO)			50.8 mm	2 in	144 Months	2 to 1	15.2 m	50 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Shrink Tubing, Flexible 2.000" (50.80mm) 2 to 1 Black 50.0' (15.2m)

Technical documentation and resources
