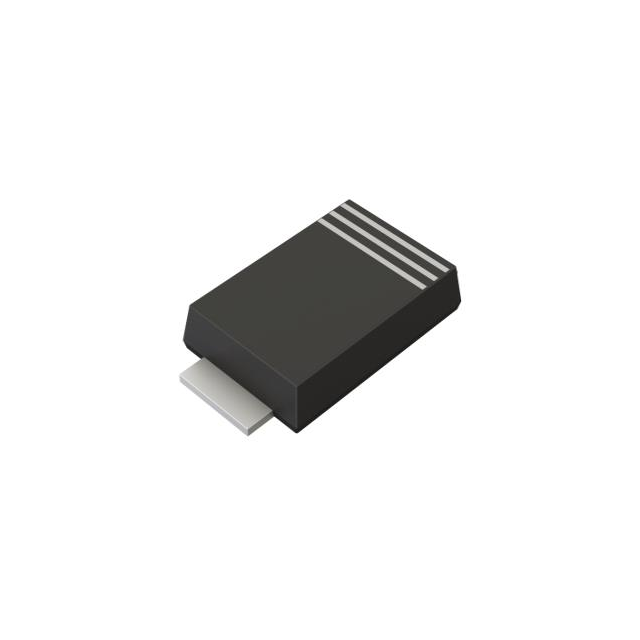

RR1LAM4STFTR
NRNDRohm Semiconductor
AUTOMOTIVE STANDARD RECTIFIER DIODE (AEC-Q101 QUALIFIED)
Deep-Dive with AI
Search across all available documentation for this part.
RR1LAM4STFTR
NRNDRohm Semiconductor
AUTOMOTIVE STANDARD RECTIFIER DIODE (AEC-Q101 QUALIFIED)
Technical Specifications
Parameters and characteristics for this part
| Specification | RR1LAM4STFTR |
|---|---|
| Current - Average Rectified (Io) | 1 A |
| Current - Reverse Leakage @ Vr | 10 µA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | 150 ¯C |
| Package / Case | SOD-128 |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | PMDT |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 400 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.32 | |
| 10 | $ 0.28 | |||
| 100 | $ 0.19 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.13 | |||
| Digi-Reel® | 1 | $ 0.32 | ||
| 10 | $ 0.28 | |||
| 100 | $ 0.19 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.13 | |||
| Tape & Reel (TR) | 3000 | $ 0.13 | ||
Description
General part information
RR1LAM4STF Series
RR1LAM4STF is the high reliability automotive Standard Rectifier Diode, suitable for general rectification.
