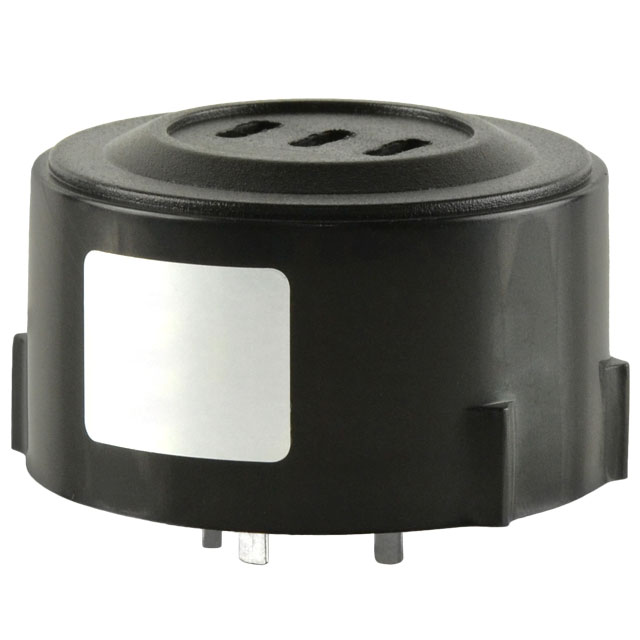

CPI-4929C-120

Active

CUI Devices

AUDIO BUZZER PIEZO 5VDC 13VDC 60MA 12VDC 104DB SCREW MOUNT SCREW BOX

Search across all available documentation for this part.

Active

CUI Devices

AUDIO BUZZER PIEZO 5VDC 13VDC 60MA 12VDC 104DB SCREW MOUNT SCREW BOX

Technical Specifications

Parameters and characteristics for this part

Specification	CPI-4929C-120

Current - Supply	60 mA
Driver Circuitry	Internally Driven, Indicator
Frequency	2.5 kHz
Height - Seated (Max) [Max] [z]	29.4 mm
Height - Seated (Max) [Max] [z]	1.157 in
Input Type	DC
Mounting Type	Through Hole
Operating Mode	Single Tone
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Port Location	Top
Ratings	Washable
Size / Dimension [diameter]	49.1 mm
Size / Dimension [diameter]	1.933 "
Sound Pressure Level (SPL)	104 dB
Technology	Piezo
Termination	PC Pins
Voltage - Rated	12 VDC

Part	Voltage - Rated	Operating Mode	Sound Pressure Level (SPL)	Ratings	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Termination	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Frequency	Technology	Operating Temperature [Min]	Operating Temperature [Max]	Driver Circuitry	Input Type	Port Location	Current - Supply
CUI Devices CPI-4929C-120	12 VDC	Single Tone	104 dB	Washable	29.4 mm	1.157 in	PC Pins	Through Hole	49.1 mm	1.933 "	2.5 kHz	Piezo	-30 ░C	85 °C	Indicator Internally Driven	DC	Top	60 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 0.13
Digikey	Tray	1	$ 6.39
		10	$ 5.40

General part information

Buzzers Indicator, Internally Driven Piezo 12 V 60mA 2.5kHz 104dB @ 12V, 30cm Through Hole PC Pins
