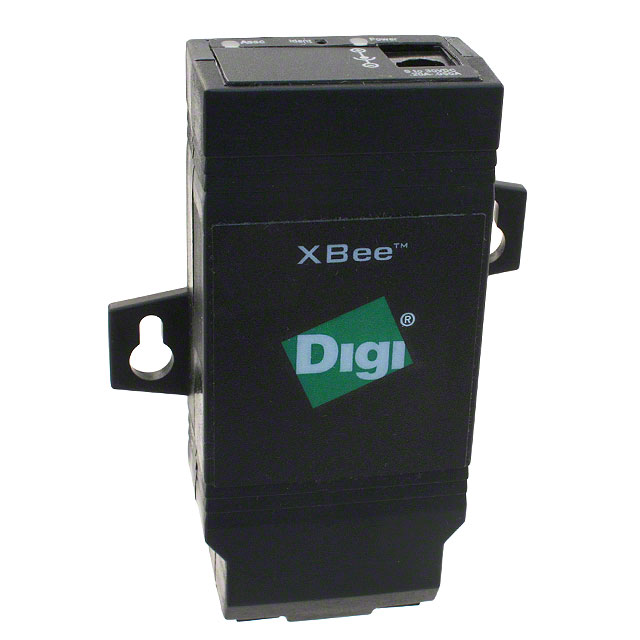

XA-A14-CS1R

Obsolete

Digi

X-BEE 802.15.4 SENSOR INT RJ45

Search across all available documentation for this part.

Obsolete

Digi

X-BEE 802.15.4 SENSOR INT RJ45

Technical Specifications

Parameters and characteristics for this part

Specification	XA-A14-CS1R

Applications	Sensor Interface - Ready To Go Module
Data Rate (Max)	250 kbps
Features	30 m
Frequency [Max]	2.4835 GHz
Frequency [Min]	2.4 GHz
Function	Transceiver
Interface	RJ-45
Modulation or Protocol	802.15.4 Zigbee™
Power - Output	0 dBm
Sensitivity	-92 dBm
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	9 V

Part	Sensitivity	Frequency [Min]	Frequency [Max]	Function	Applications	Data Rate (Max)	Features	Voltage - Supply	Voltage - Supply	Interface	Modulation or Protocol	Power - Output	Voltage - Supply [Max]	Voltage - Supply [Min]	Features
Digi XA-A14-CE1P	-100 dBm	2.4 GHz	2.4835 GHz	Transceiver	Sensor Interface - Ready To Go Module	250 kbps	100m Range	5 V	USB	USB	802.15.4 Zigbee™	18 dBm
Digi XA-A14-CS3P	-100 dBm	2.4 GHz	2.4835 GHz	Transceiver	Sensor Interface - Ready To Go Module	250 kbps	100m Range			RS-485	802.15.4 Zigbee™	18 dBm	30 VDC	9 V
Digi XA-A14-CS2R	-92 dBm	2.4 GHz	2.4835 GHz	Transceiver	Sensor Interface - Ready To Go Module	250 kbps				RS-232 (DB9)	802.15.4 Zigbee™	0 dBm	30 VDC	9 V	30 m
Digi XA-A14-CS1R	-92 dBm	2.4 GHz	2.4835 GHz	Transceiver	Sensor Interface - Ready To Go Module	250 kbps				RJ-45	802.15.4 Zigbee™	0 dBm	30 VDC	9 V	30 m
Digi XA-A14-CS2P	-100 dBm	2.4 GHz	2.4835 GHz	Transceiver	Sensor Interface - Ready To Go Module	250 kbps	100m Range			RS-232 (DB9)	802.15.4 Zigbee™	18 dBm	30 VDC	9 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Transceiver 2.4GHz ~ 2.4835GHz 802.15.4 Zigbee™ RJ-45 250kbps
