PXPNPN12RAF04AFI006PUR

Active

BULGIN LIMITED

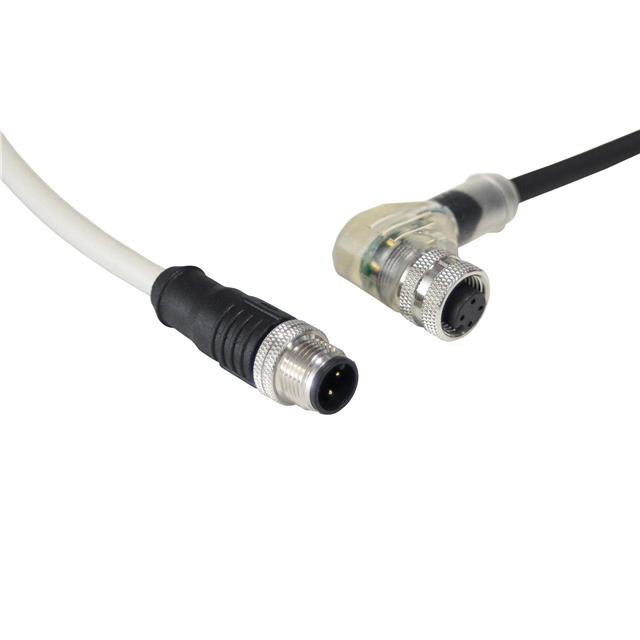

SENSOR CABLE, 90° M12 RECEPTACLE, M12 PLUG, 4 POSITIONS, 600 MM, 23.6 ", BUCCANEER M12 SERIES

Search across all available documentation for this part.

Active

BULGIN LIMITED

SENSOR CABLE, 90° M12 RECEPTACLE, M12 PLUG, 4 POSITIONS, 600 MM, 23.6 ", BUCCANEER M12 SERIES

Technical Specifications

Parameters and characteristics for this part

Specification	PXPNPN12RAF04AFI006PUR

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	4
1st Connector Number of Positions Loaded	All
1st Connector Orientation	A
1st Connector Shell Size - Insert	M12
1st Connector Type	Receptacle
2nd Connector Gender	Female Sockets
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Connector Number of Positions	4
2nd Connector Number of Positions Loaded	All
2nd Connector Shell Size - Insert	M12
2nd Connector Type	Plug, Right Angle
Assembly Configuration	Standard
Cable Material	Polyurethane (PUR)
Cable Type	Round
Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Length	600 mm
Length	1.97 ft
Shielding	Unshielded
Usage	Industrial Environments

Part	1st Connector Shell Size - Insert	2nd Connector Shell Size - Insert	2nd Connector Mounting Type	2nd Connector Number of Positions Loaded	1st Connector Number of Positions	1st Connector Mounting Type	Shielding	Cable Material	1st Connector Orientation	Color	2nd Connector Number of Positions	Usage	2nd Connector Type	1st Connector Gender	Ingress Protection	Assembly Configuration	Length [x]	Length [x]	Cable Type	1st Connector Number of Positions Loaded	1st Connector Type	2nd Connector Gender	Length	Length
BULGIN LIMITED PXPNPN12RAF04AFI020PUR	M12	M12	Free Hanging (In-Line)	All	4	Free Hanging (In-Line)	Unshielded	Polyurethane (PUR)	A	Black	4	Industrial Environments	Plug Right Angle	Male Pins	IP67 - Dust Tight Waterproof	Standard	2 m	6.56 ft	Round	All	Receptacle	Female Sockets
BULGIN LIMITED PXPNPN12RAF04AFI006PUR	M12	M12	Free Hanging (In-Line)	All	4	Free Hanging (In-Line)	Unshielded	Polyurethane (PUR)	A	Black	4	Industrial Environments	Plug Right Angle	Male Pins	IP67 - Dust Tight Waterproof	Standard			Round	All	Receptacle	Female Sockets	600 mm	1.97 ft
BULGIN LIMITED PXPNPN12RAF04AFI003PUR	M12	M12	Free Hanging (In-Line)	All	4	Free Hanging (In-Line)	Unshielded	Polyurethane (PUR)	A	Black	4	Industrial Environments	Plug Right Angle	Male Pins	IP67 - Dust Tight Waterproof	Standard			Round	All	Receptacle	Female Sockets

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly 1.97' (600.00mm)
