CWN-350-26-0000

Active

CW Industries

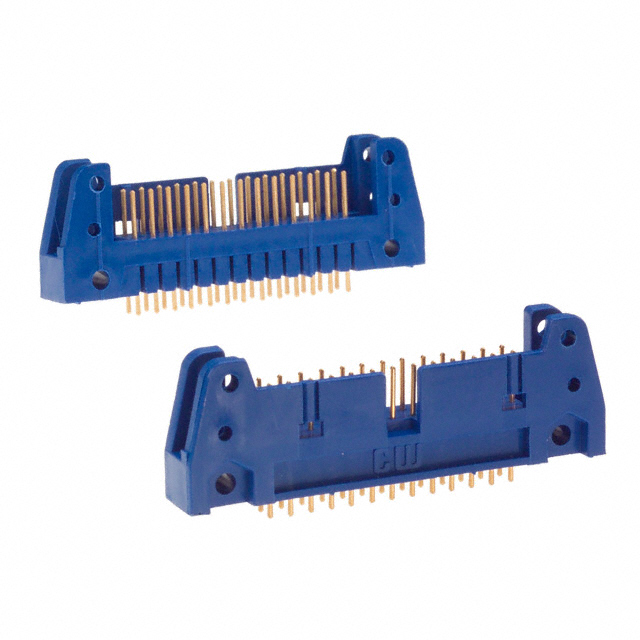

CONN HEADER VERT 26POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CWN-350-26-0000

Active

CW Industries

CONN HEADER VERT 26POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CWN-350-26-0000

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Nickel
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	1.27 µm
Contact Finish Thickness - Post	50 µin
Contact Length - Mating	6.1 mm
Contact Length - Mating [x]	0.24 in
Contact Length - Post	0.09 "
Contact Length - Post	2.29 mm
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Blue
Insulation Height	0.681 in
Insulation Height	17.3 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

CWN-350 Series

Part	Contact Length - Mating	Contact Length - Mating [x]	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Shrouding	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Connector Type	Fastening Type	Material Flammability Rating	Style	Contact Shape	Termination	Contact Finish - Mating	Number of Positions	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Insulation Material	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Number of Positions
CW Industries CWN-350-26-0021	6.1 mm	0.24 in	Nickel	0.09 "	2.29 mm	Blue	2.54 mm	0.1 in	Shrouded - 4 Wall	Through Hole	-55 °C	125 °C	2	Header	Push-Pull	UL94 V-0	Board to Cable/Wire	Circular	Solder	Gold	26	0.681 in	17.3 mm	30 Áin	0.76 Ám	Male Pin	1.27 µm	50 µin	Phosphor Bronze	Thermoplastic	0.1 in	2.54 mm	All
CW Industries CWN-350-40-0021	6.1 mm	0.24 in	Nickel	0.09 "	2.29 mm	Blue	2.54 mm	0.1 in	Shrouded - 4 Wall	Through Hole	-55 °C	125 °C	2	Header	Push-Pull	UL94 V-0	Board to Cable/Wire	Circular	Solder	Gold	40	0.681 in	17.3 mm	30 Áin	0.76 Ám	Male Pin	1.27 µm	50 µin	Phosphor Bronze	Thermoplastic	0.1 in	2.54 mm	All
CW Industries CWN-350-50-0021	6.1 mm	0.24 in	Nickel	0.09 "	2.29 mm	Blue	2.54 mm	0.1 in	Shrouded - 4 Wall	Through Hole	-55 °C	125 °C	2	Header	Push-Pull	UL94 V-0	Board to Cable/Wire	Circular	Solder	Gold	50	0.681 in	17.3 mm	30 Áin	0.76 Ám	Male Pin	1.27 µm	50 µin	Phosphor Bronze	Thermoplastic	0.1 in	2.54 mm	All
CW Industries CWN-350-26-0000	6.1 mm	0.24 in	Nickel	0.09 "	2.29 mm	Blue	2.54 mm	0.1 in	Shrouded - 4 Wall	Through Hole	-55 °C	125 °C	2	Header	Push-Pull	UL94 V-0	Board to Cable/Wire	Circular	Solder	Gold	26	0.681 in	17.3 mm	10 çin	0.25 çm	Male Pin	1.27 µm	50 µin	Phosphor Bronze	Thermoplastic	0.1 in	2.54 mm	All
CW Industries CWN-350-14-0000	6.1 mm	0.24 in	Nickel	0.09 "	2.29 mm	Blue	2.54 mm	0.1 in	Shrouded - 4 Wall	Through Hole	-55 °C	125 °C	2	Header	Push-Pull	UL94 V-0	Board to Cable/Wire	Circular	Solder	Gold	14	0.681 in	17.3 mm	10 çin	0.25 çm	Male Pin	1.27 µm	50 µin	Phosphor Bronze	Thermoplastic	0.1 in	2.54 mm	All
CW Industries CWN-350-16-0000	6.1 mm	0.24 in	Nickel	0.09 "	2.29 mm	Blue	2.54 mm	0.1 in	Shrouded - 4 Wall	Through Hole	-55 °C	125 °C	2	Header	Push-Pull	UL94 V-0	Board to Cable/Wire	Circular	Solder	Gold		0.681 in	17.3 mm	10 çin	0.25 çm	Male Pin	1.27 µm	50 µin	Phosphor Bronze	Thermoplastic	0.1 in	2.54 mm	All	16
CW Industries CWN-350-40-0000	6.1 mm	0.24 in	Nickel	0.09 "	2.29 mm	Blue	2.54 mm	0.1 in	Shrouded - 4 Wall	Through Hole	-55 °C	125 °C	2	Header	Push-Pull	UL94 V-0	Board to Cable/Wire	Circular	Solder	Gold	40	0.681 in	17.3 mm	10 çin	0.25 çm	Male Pin	1.27 µm	50 µin	Phosphor Bronze	Thermoplastic	0.1 in	2.54 mm	All

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.14
		10	$ 2.85
		100	$ 2.51
		500	$ 2.21

Description

General part information

CWN-350 Series

Connector Header Through Hole 26 position 0.100" (2.54mm)
