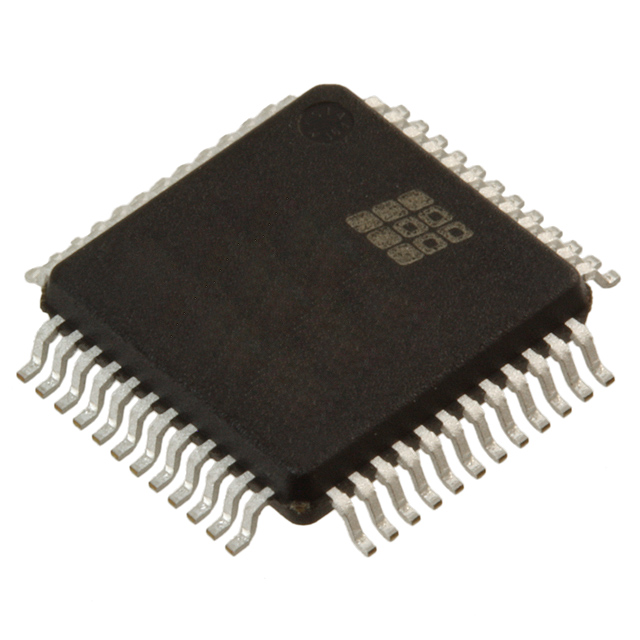

ISPLSI 2032E-200LT48

Obsolete

LATTICE SEMICONDUCTOR

IC CPLD 32MC 3.5NS 48TQFP

Search across all available documentation for this part.

Obsolete

LATTICE SEMICONDUCTOR

IC CPLD 32MC 3.5NS 48TQFP

Technical Specifications

Parameters and characteristics for this part

Specification	ISPLSI 2032E-200LT48

Delay Time tpd(1) Max [Max]	3.5 ns
Mounting Type	Surface Mount
Number of Gates	1000
Number of I/O	32
Number of Logic Elements/Blocks	8
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Package / Case	48-LQFP
Programmable Type	In System Programmable
Supplier Device Package	48-TQFP (7x7)
Voltage Supply - Internal [Max]	5.25 V
Voltage Supply - Internal [Min]	4.75 V

Part	Number of Logic Elements/Blocks	Voltage Supply - Internal [Min]	Voltage Supply - Internal [Max]	Package / Case	Programmable Type	Mounting Type	Supplier Device Package	Number of I/O	Number of Gates	Operating Temperature [Max]	Delay Time tpd(1) Max [Max]
LATTICE SEMICONDUCTOR ISPLSI 2032E-225LJ44	8	4.75 V	5.25 V	44-LCC (J-Lead)	In System Programmable	Surface Mount	44-PLCC (16.59x16.59)	32	1000	70 °C	3.5 ns
LATTICE SEMICONDUCTOR ISPLSI 2032E-135LJ44	8	4.75 V	5.25 V	44-LCC (J-Lead)	In System Programmable	Surface Mount	44-PLCC (16.59x16.59)	32	1000	70 °C	7.5 ns
LATTICE SEMICONDUCTOR ISPLSI 2032E-225LT48	8	4.75 V	5.25 V	48-LQFP	In System Programmable	Surface Mount	48-TQFP (7x7)	32	1000	70 °C	3.5 ns
LATTICE SEMICONDUCTOR ISPLSI 2032E-200LT48	8	4.75 V	5.25 V	48-LQFP	In System Programmable	Surface Mount	48-TQFP (7x7)	32	1000	70 °C	3.5 ns
LATTICE SEMICONDUCTOR ISPLSI 2032E-135LT48	8	4.75 V	5.25 V	48-LQFP	In System Programmable	Surface Mount	48-TQFP (7x7)	32	1000	70 °C	7.5 ns

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

IC CPLD 32MC 3.5NS 48TQFP
