XMLDCL-H0-R250-00A3AAAE7

Active

Cree LED

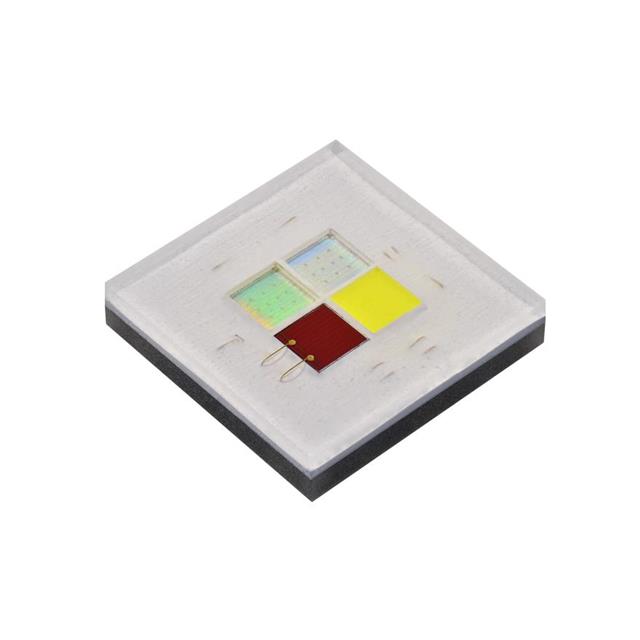

LED QUAD-COLOR BLUE/GREEN/RED/WHITE 8-PIN SMD EP T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XMLDCL-H0-R250-00A3AAAE7

Active

Cree LED

LED QUAD-COLOR BLUE/GREEN/RED/WHITE 8-PIN SMD EP T/R

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XMLDCL-H0-R250-00A3AAAE7

Color	Green, Blue, White, Red
Current - Max [custom]	1.75 A
Current - Max [custom]	1.75 A
Current - Max [custom]	1.75 A
Current - Max [custom]	1.75 A
Current - Test [custom]	350 mA
Current - Test [custom]	350 mA
Current - Test [custom]	350 mA
Current - Test [custom]	350 mA
Height - Seated (Max) [Max] [z]	1.13 mm
Height - Seated (Max) [Max] [z]	0.044 "
Lumens/Watt @ Current - Test [custom]	17 lm/W
Lumens/Watt @ Current - Test [custom]	154 lm/W
Lumens/Watt @ Current - Test [custom]	88 lm/W
Lumens/Watt @ Current - Test [custom]	118 lm/W
Luminous Flux @ Current/Temperature [custom]	120 lm
Luminous Flux @ Current/Temperature [custom]	17 lm
Luminous Flux @ Current/Temperature [custom]	65 lm
Luminous Flux @ Current/Temperature [custom]	140 lm
Mounting Type	Surface Mount
Package / Case	2020
Package / Case	5050 Metric
Size / Dimension [x]	0.197 in
Size / Dimension [x]	5 mm
Size / Dimension [y]	5 mm
Size / Dimension [y]	0.197 "
Supplier Device Package	2020
Thermal Resistance of Package [custom]	0.8 °C/W
Viewing Angle	118 °
Voltage - Forward (Vf) (Typ) [custom]	2.9 V
Voltage - Forward (Vf) (Typ) [custom]	2.9 V
Voltage - Forward (Vf) (Typ) [custom]	2.6 V
Voltage - Forward (Vf) (Typ) [custom]	2.1 V
Wavelength	2950 K, 528 nm, 625 nm, 458 nm

XMLDCL Series

...

Part	Current - Max [custom]	Current - Max [custom]	Current - Max [custom]	Current - Max [custom]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Package / Case	Package / Case	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Color	Supplier Device Package	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Viewing Angle	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Wavelength	Lumens/Watt @ Current - Test [custom]	Lumens/Watt @ Current - Test [custom]	Lumens/Watt @ Current - Test [custom]	Lumens/Watt @ Current - Test [custom]	Thermal Resistance of Package [custom]	Wavelength
Cree LED XMLDCL-H0-0000-00A3AAAC1	1.75 A	1.75 A	1.75 A	1.75 A	350 mA	350 mA	350 mA	350 mA	2020	5050 Metric	170 lm	95 lm	120 lm	42 lm	Blue Green Red White	2020	2.9 V	2.9 V	2.6 V	2.1 V	1.13 mm	0.044 "	118 °	Surface Mount	0.197 in	5 mm	0.197 "	5 mm	2950K White 458nm Blue 528nm Green 625nm Red	41 lm/W	118 lm/W	129 lm/W	187 lm/W
Cree LED XMLDCL-H0-0000-00A4ABCA2	1.75 A	1.75 A	1.75 A	1.75 A	350 mA	350 mA	350 mA	350 mA	2020	5050 Metric	170 lm	95 lm	120 lm	42 lm	Blue Green Red White	2020	2.9 V	2.9 V	2.6 V	2.1 V	1.13 mm	0.044 "	118 °	Surface Mount	0.197 in	5 mm	0.197 "	5 mm	458nm Blue 528nm Green 625nm Red 6850K White	41 lm/W	118 lm/W	129 lm/W	187 lm/W
Cree LED XMLDCL-H0-R250-00A3AAAE7	1.75 A	1.75 A	1.75 A	1.75 A	350 mA	350 mA	350 mA	350 mA	2020	5050 Metric	140 lm	65 lm	120 lm	17 lm	Blue Green Red White	2020	2.9 V	2.9 V	2.6 V	2.1 V	1.13 mm	0.044 "	118 °	Surface Mount	0.197 in	5 mm	0.197 "	5 mm		17 lm/W	118 lm/W	88 lm/W	154 lm/W	0.8 °C/W	458 nm 528 nm 625 nm 2950 K
Cree LED XMLDCL-H0-0000-00A3AABE7	1.75 A	1.75 A	1.75 A	1.75 A	350 mA	350 mA	350 mA	350 mA	2020	5050 Metric	140 lm	65 lm	135 lm	17 lm	Blue Green Red White	2020	2.9 V	2.9 V	2.6 V	2.1 V	1.13 mm	0.044 "	118 °	Surface Mount	0.197 in	5 mm	0.197 "	5 mm	4000K White 458nm Blue 528nm Green 625nm Red	17 lm/W	133 lm/W	88 lm/W	154 lm/W	0.8 °C/W
Cree LED XMLDCL-H0-0000-00A4ACCA2	1.75 A	1.75 A	1.75 A	1.75 A	350 mA	350 mA	350 mA	350 mA	2020	5050 Metric	170 lm	95 lm	120 lm	42 lm	Blue Green Red White	2020	2.9 V	2.9 V	2.6 V	2.1 V	1.13 mm	0.044 "	118 °	Surface Mount	0.197 in	5 mm	0.197 "	5 mm	458nm Blue 528nm Green 625nm Red 6850K White	41 lm/W	118 lm/W	129 lm/W	187 lm/W
Cree LED XMLDCL-00-0000-00C5AABA1	1.75 A	1.75 A	1.75 A	1.75 A	350 mA	350 mA	350 mA	350 mA	2020	5050 Metric	180 lm	100 lm	140 lm	44 lm	Blue Green Red White	2020	2.9 V	2.9 V	2.6 V	2.1 V	3.15 mm	0.124 in	120 °	Surface Mount	0.197 in	5 mm	0.197 "	5 mm	458nm Blue 528nm Green 625nm Red 6850K White	43 lm/W	138 lm/W	136 lm/W	198 lm/W
Cree LED XMLDCL-00-0000-00C5ACBA1	1.75 A	1.75 A	1.75 A	1.75 A	350 mA	350 mA	350 mA	350 mA	2020	5050 Metric	180 lm	100 lm	140 lm	44 lm	Blue Green Red White	2020	2.9 V	2.9 V	2.6 V	2.1 V	3.15 mm	0.124 in	120 °	Surface Mount	0.197 in	5 mm	0.197 "	5 mm	458nm Blue 528nm Green 625nm Red 6850K White	43 lm/W	138 lm/W	136 lm/W	198 lm/W
Cree LED XMLDCL-H0-0000-00A4ACBA2	1.75 A	1.75 A	1.75 A	1.75 A	350 mA	350 mA	350 mA	350 mA	2020	5050 Metric	170 lm	95 lm	120 lm	42 lm	Blue Green Red White	2020	2.9 V	2.9 V	2.6 V	2.1 V	1.13 mm	0.044 "	118 °	Surface Mount	0.197 in	5 mm	0.197 "	5 mm	458nm Blue 528nm Green 625nm Red 6850K White	41 lm/W	118 lm/W	129 lm/W	187 lm/W
Cree LED XMLDCL-00-R250-00C4AAAE5	1.75 A	1.75 A	1.75 A	1.75 A	350 mA	350 mA	350 mA	350 mA	2020	5050 Metric	155 lm	80 lm	145 lm	23 lm	Blue Green Red White	2020	2.9 V	2.9 V	2.6 V	2.1 V	3.15 mm	0.124 in	120 °	Surface Mount	0.197 in	5 mm	0.197 "	5 mm	458nm Blue 528nm Green 625nm Red	23 lm/W	143 lm/W	109 lm/W	170 lm/W	0.8 °C/W	4000 K
Cree LED XMLDCL-H0-0000-00A4ABAA2	1.75 A	1.75 A	1.75 A	1.75 A	350 mA	350 mA	350 mA	350 mA	2020	5050 Metric	170 lm	95 lm	120 lm	42 lm	Blue Green Red White	2020	2.9 V	2.9 V	2.6 V	2.1 V	1.13 mm	0.044 "	118 °	Surface Mount	0.197 in	5 mm	0.197 "	5 mm	458nm Blue 528nm Green 625nm Red 6850K White	41 lm/W	118 lm/W	129 lm/W	187 lm/W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 5.94
Digikey	Cut Tape (CT)	1	$ 13.18
		10	$ 12.52
		50	$ 12.17
		100	$ 11.20
	Digi-Reel®	1	$ 13.18
		10	$ 12.52
		50	$ 12.17
		100	$ 11.20
	Tape & Reel (TR)	250	$ 10.19
		500	$ 9.54

Description

General part information

XMLDCL Series

LED Lighting Color XLamp® XM-L® Gen 2 Red, Green, Blue, White (RGBW) 625nm Red, 528nm Green, 458nm Blue, 2950K 2020 (5050 Metric)
