FI1B002RB

Active

Belden Inc.

CBL FIBER OPTIC 125UM MULTIMODE

Search across all available documentation for this part.

Active

Belden Inc.

CBL FIBER OPTIC 125UM MULTIMODE

Technical Specifications

Parameters and characteristics for this part

Specification	FI1B002RB

Cladding Diameter [diameter]	125 µm
Core Diameter [diameter]	62.5 µm
Features	Rip Cord
Features	2 pcs per Pkg
Jacket (Insulation) Diameter [diameter]	6.6 mm
Jacket (Insulation) Diameter [diameter]	0.26 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Orange
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Ratings	OFNR
Style	Multiple Fibers
Tensile Strength	40.8 kg
Type	Multimode

Part	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Type	Ratings	Jacket Color	Features	Features	Cladding Diameter [diameter]	Style	Tensile Strength	Core Diameter [diameter]
Belden Inc. FI1B002PB	70 °C	0 °C	Poly-Vinyl Chloride (PVC)	5.84 mm	0.23 in	Multimode	OFNP	Orange	Rip Cord	2 pcs per Pkg	125 µm	Multiple Fibers	40.8 kg	62.5 µm
Belden Inc. FI1B002PD
Belden Inc. FI1B002RB	70 °C	-40 °C	Poly-Vinyl Chloride (PVC)	6.6 mm	0.26 in	Multimode	OFNR	Orange	Rip Cord	2 pcs per Pkg	125 µm	Multiple Fibers	40.8 kg	62.5 µm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 1.19

General part information

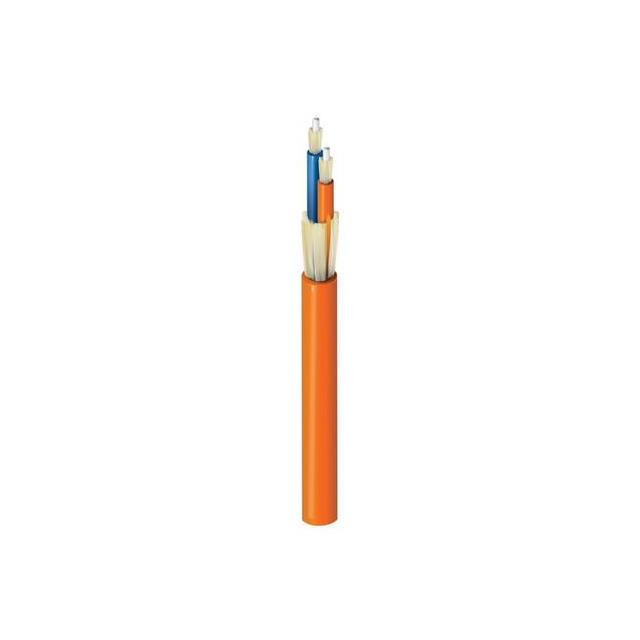

Fiber Optic Cable Orange Multimode 125µm

Technical documentation and resources
