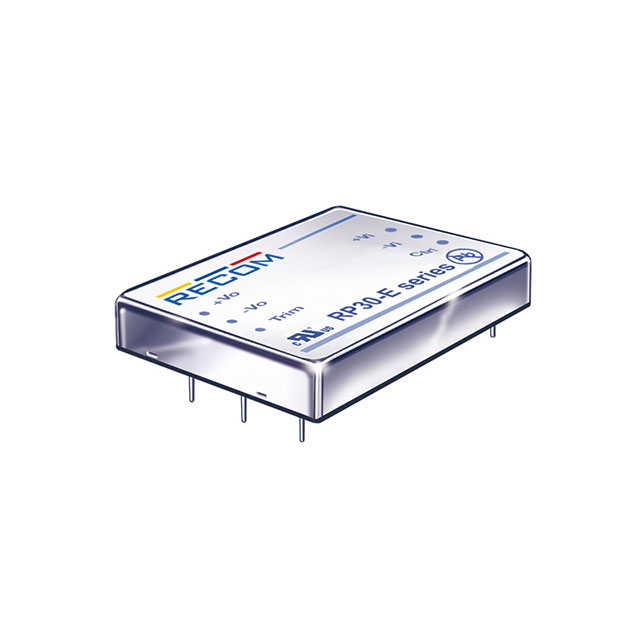

RP30-1215SE-HC

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 30W DC/DC 1.6KV REG 2:1 9-18VIN 15VOUT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

RP30-1215SE-HC

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 30W DC/DC 1.6KV REG 2:1 9-18VIN 15VOUT

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RP30-1215SE-HC

Applications	ITE (Commercial)
Control Features	Active High, Enable
Current - Output (Max) [Max]	2 A
Efficiency	88 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-DIP Module, 7 Leads
Power (Watts)	30 W
Size / Dimension [x]	50.8 mm
Size / Dimension [y]	40.64 mm
Size / Dimension [z]	0.4 in
Type	Isolated Module
Voltage - Input (Max) [Max]	18 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	1.6 kV
Voltage - Output 1	15 V

RP30-243.3 Series

Isolated DC/DC Converters - Through Hole 30W DC/DC 1.6kV REG 2:1 18-36Vin 12Vout

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max)	Mounting Type	Features	Voltage - Isolation	Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Input (Min) [Min]	Number of Outputs	Applications	Power (Watts)	Efficiency	Package / Case	Voltage - Output 1	Voltage - Output 2	Control Features	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]
RECOM Power RP30-1212DE	85 °C	-40 °C	1.25 A	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO	1.6 kV	Isolated Module	0.4 in	50.8 mm	40.64 mm	9 V	2	ITE (Commercial)	30 W	87 %	8-DIP Module 7 Leads	12 V	-12 V	Active High Enable	18 V
RECOM Power RP30-2405SEW/N-HC	85 °C	-40 °C		Through Hole	OCP OTP OVP Remote On/Off SCP UVLO	1.6 kV	Isolated Module	0.4 in	50.8 mm	40.64 mm	10 VDC	1	ITE (Commercial)	30 W	87 %	8-DIP Module 7 Leads	5 V		Active Low Enable		6 A
RECOM Power RP30-243.3SEW-HC	85 °C	-40 °C		Through Hole	OCP OTP OVP Remote On/Off SCP UVLO	1.6 kV	Isolated Module	0.4 in	50.8 mm	40.64 mm	10 VDC	1	ITE (Commercial)	30 W	87 %	8-DIP Module 7 Leads	3.3 V		Active High Enable		6 A
RECOM Power RP30-2405DFW/N	85 °C	-40 °C		Through Hole	OCP OVP Remote On/Off SCP	1.6 kV	Isolated Module		50.8 mm		9 V	2	ITE (Commercial)	30 W	88 %	6-DIP Module	5 V	-5 V	Active Low Enable	36 V	3 A	3 A	25.4 mm	0.4 "	2 in	10.2 mm	25.4 mm
RECOM Power RP30-2405SE	85 °C	-40 °C		Through Hole	OCP OTP OVP Remote On/Off SCP UVLO	1.6 kV	Isolated Module	0.4 in	50.8 mm	40.64 mm	18 V	1	ITE (Commercial)	30 W	88 %	8-DIP Module 7 Leads	5 V		Active High Enable	36 V	6 A
RECOM Power RP30-2405SEW-HC	85 °C	-40 °C		Through Hole	OCP OTP OVP Remote On/Off SCP UVLO	1.6 kV	Isolated Module	0.4 in	50.8 mm	40.64 mm	10 VDC	1	ITE (Commercial)	30 W	87 %	8-DIP Module 7 Leads	5 V		Active High Enable		6 A
RECOM Power RP30-4812DE	85 °C	-40 °C	1.25 A	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO	1.6 kV	Isolated Module	0.4 in	50.8 mm	40.64 mm	36 V	2	ITE (Commercial)	30 W	88 %	8-DIP Module 7 Leads	12 V	-12 V	Active High Enable	75 V
RECOM Power RP30-243.3SF	85 °C	-40 °C		Through Hole	OCP OTP OVP Remote On/Off SCP	1.6 kV	Isolated Module		50.8 mm		18 V	1	ITE (Commercial)	30 W	87 %	6-DIP Module	3.3 V		Active High Enable	36 V	8 A		25.4 mm	0.4 "	2 in	10.2 mm	25.4 mm
RECOM Power RP30-1215SE-HC	85 °C	-40 °C		Through Hole	OCP OTP OVP Remote On/Off SCP UVLO	1.6 kV	Isolated Module	0.4 in	50.8 mm	40.64 mm	9 V	1	ITE (Commercial)	30 W	88 %	8-DIP Module 7 Leads	15 V		Active High Enable	18 V	2 A
RECOM Power RP30-243.3SF/N	85 °C	-40 °C		Through Hole	OCP OTP OVP Remote On/Off SCP	1.6 kV	Isolated Module		50.8 mm		18 V	1	ITE (Commercial)	30 W	87 %	6-DIP Module	3.3 V		Active Low Enable	36 V	8 A		25.4 mm	0.4 "	2 in	10.2 mm	25.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	15	$ 87.07
Sager	N/A	1	$ 92.84
		5	$ 87.04
		10	$ 81.91
		25	$ 76.31
		50	$ 73.29
		100	$ 71.40
		250	$ 67.94

Description

General part information

RP30-243.3 Series

Isolated DC/DC Converters - Through Hole 30W DC/DC 1.6kV REG 2:1 18-36Vin 12Vout

Documents

Technical documentation and resources

Datasheet

Document
