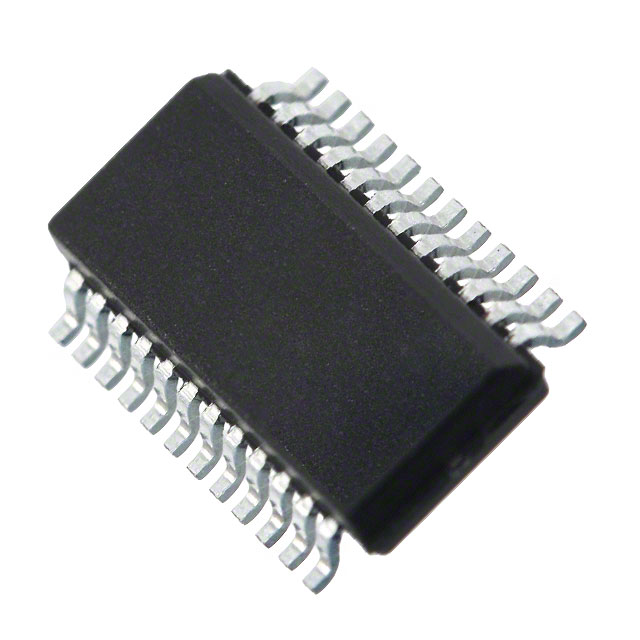

AS1113-BSSU
Obsoleteams-OSRAM USA INC.
IC LED DRIVER LINEAR 50MA 24SSOP
Deep-Dive with AI
Search across all available documentation for this part.
AS1113-BSSU
Obsoleteams-OSRAM USA INC.
IC LED DRIVER LINEAR 50MA 24SSOP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AS1113-BSSU |
|---|---|
| Applications | Signage |
| Current - Output / Channel | 50 mA |
| Frequency | 50 MHz |
| Internal Switch(s) | True |
| Mounting Type | Surface Mount |
| Number of Outputs | 16 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 24-SSOP |
| Package / Case [custom] | 0.154 ", 3.9 mm |
| Supplier Device Package | 24-SSOP |
| Topology | Shift Register |
| Type | Linear |
| Voltage - Output | 15 VDC |
| Voltage - Supply (Max) | 5.5 V |
| Voltage - Supply (Min) [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AS1113 Series
LED Driver IC 16 Output Linear Shift Register Dimming 50mA 24-SSOP
Documents
Technical documentation and resources
No documents available
